MV-CL044-91NC
Color
mv-cl044-91nc
Line Scan Camera

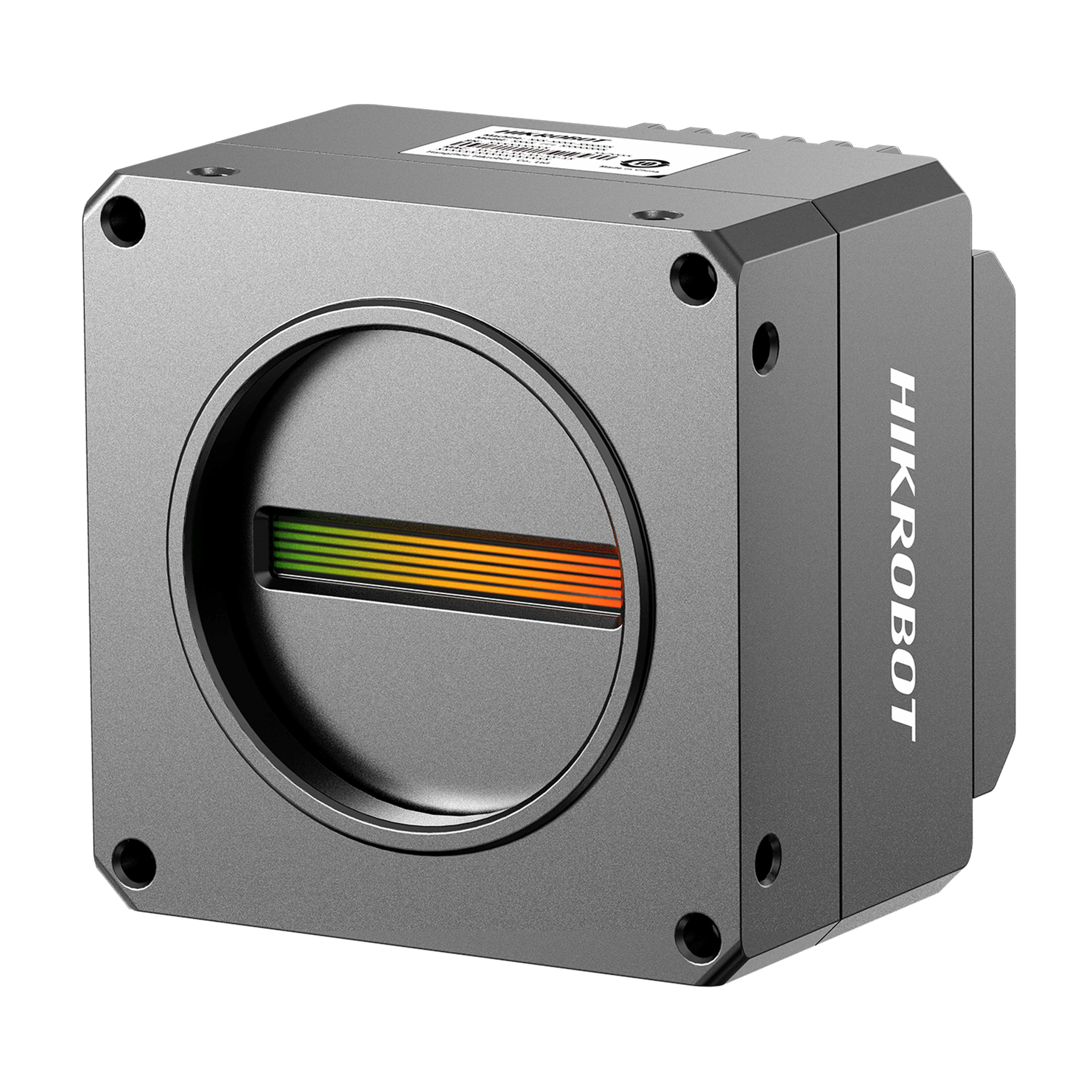

De Hikrobot MV-CL044-91NC is een line-scan camera. Pixelpitch 7 μm × 7 μm.
Interface: 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) en Fast Ethernet (100 Mbit/s). Lensmount: M42*1.0, flange focal length 12 mm Connecting to F-mount, C-mount, and other lenses via adapter ring.
Line scan voor continue banen en stromen waar de optische as haaks op de bewegingsrichting staat en de resolutie over de breedte van het materiaal moet meeschalen.
Beschikbare configuraties
- mv-cl044-91nc — Color
- mv-cl044-91nm — Mono
Select variant
SKU: mv-cl044-91nc
Specifications
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or the third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s) |
| Digitale I/O | 12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal |
| Afmetingen | 62 mm × 62 mm × 46.1 mm (2.4" × 2.4" × 1.8") |
| Belichtingsmodus | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Belichtingstijd | 1 μs to 10 ms |
| Externe triggermodus | Lijntrigger, frametrigger, lijn + frametrigger |
| Gain | Supports 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Luchtvochtigheid | 20% RH to 80% RH (geen condensatie) |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Lensvatting | M42*1.0, flange focal length 12 mm Connecting to F-mount, C-mount, and other lenses via adapter ring |
| Besturingssysteem | 32/64-bit Windows 7/10/11, 32/64-bit Linux |
| Mono/kleur | Kleur |
| Pixelgrootte | 7 μm × 7 μm |
| Voeding | 12 VDC to 24 VDC, supports PoE |
| Sensortype | CMOS |
| Temperatuur | Werktemperatuur: –20 °C to 55 °C (–4 °F to 131 °F) Opslagtemperatuur: –30 °C to 80 °C (–22 °F to 176 °F) |
| Triggermodus | Externe trigger, interne trigger |
| Gewicht | Circa 260 g (0.6 lb.) |
