MV-CL024-91GC
Color
mv-cl024-91gc
Line Scan Camera

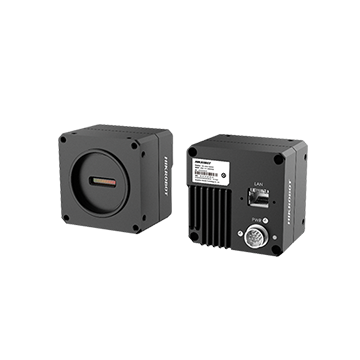

De Hikrobot MV-CL024-91GC is een line-scan camera. Pixelpitch 7 μm.
Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lensmount: M42*1.0, flange focal length 12 mm, applicable to F-mount, C-mount and others via lens adapter.
Line scan voor continue banen en stromen waar de optische as haaks op de bewegingsrichting staat en de resolutie over de breedte van het materiaal moet meeschalen.
Beschikbare configuraties
- mv-cl024-91gc — Color
- mv-cl024-91gm — Mono
Select variant
SKU: mv-cl024-91gc
Specifications
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or the third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digitale I/O | 12-pin P10 connector provides power supply and I/O: configurable output and input × 4 (Line 0/1/3/4), supports single-end/differential |
| Afmetingen | 62 mm × 62 mm × 40.5 mm (2.4" × 2.4" × 1.6") |
| Dynamisch bereik | 68 dB |
| Belichtingsmodus | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Belichtingstijd | 3 μs to 10 ms |
| Externe triggermodus | Lijntrigger, frametrigger, lijn + frametrigger |
| Gain | Supports 1.0 × |
| Luchtvochtigheid | 5% to 90% RH, niet-condenserend |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Lensvatting | M42*1.0, flange focal length 12 mm, applicable to F-mount, C-mount and others via lens adapter |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS |
| Mono/kleur | Kleur |
| Pixelgrootte | 7 μm |
| Voeding | 12 VDC to 24 VDC, supports PoE |
| Spiegelbeeld | Ondersteunt horizontale spiegelbeelduitvoer |
| Sensortype | CMOS |
| SNR | 44.7 dB |
| Temperatuur | Werktemperatuur: -20 °C to 55 °C (-4 °F to 131 °F) Opslagtemperatuur: -30 °C to 80 °C (-22 °F to 176 °F) |
| Triggermodus | Externe trigger, interne trigger |
| Gewicht | Circa 256 g (0.6 lb.) |
