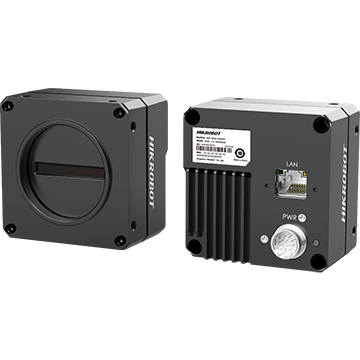

MV-CL043-A1GC

Color

mv-cl043-a1gc

Line Scan Camera

De Hikrobot MV-CL043-A1GC is een line-scan camera met 4096 × 3. Pixelpitch 7 μm × 7 μm. Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lensmount: M42*1.0, flange focal length 12 mm, applicable to F-mount, C-mount and others via adapter. Line scan voor continue banen en stromen waar de optische as haaks op de bewegingsrichting staat en de resolutie over de breedte van het materiaal moet meeschalen.
Beschikbare configuraties
  • mv-cl043-a1gc — Color
  • mv-cl043-a1gm-v2 — Mono

Select variant

SKU: mv-cl043-a1gc

Specifications

BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
CertificeringCE, RoHS, KC
ClientsoftwareMVS or the third-party software conform het GigE Vision-protocol
CompatibiliteitGigE Vision V2.0, GenICam
DatainterfaceGigabit Ethernet, compatible with Fast Ethernet
Digitale I/O12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4), supports single-end/differential
Afmetingen62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6")
Dynamisch bereik66.2 dB
BelichtingsmodusOff/ Once/ Continuous exposure mode, and supports trigger-width exposure
Externe triggermodusLijntrigger, frametrigger, lijn + frametrigger
GainSupports 1.0 ×, 2.0 ×, 4.0 ×
Luchtvochtigheid5% to 90% RH, niet-condenserend
BeschermingsgraadIP40 (bij correcte lensmontage en bedrading)
LensvattingM42*1.0, flange focal length 12 mm, applicable to F-mount, C-mount and others via adapter
Mono/kleurKleur
Pixelgrootte7 μm × 7 μm
Voeding12 VDC to 24 VDC
Resolutie4096 × 3
SpiegelbeeldOndersteunt horizontale spiegelbeelduitvoer
SensortypeCMOS
SNR39 dB
TemperatuurWerktemperatuur: -20 °C to 50 °C (-4 °F to 122 °F) Opslagtemperatuur: -30 °C to 80 °C (-22 °F to 176 °F)
TriggermodusExterne trigger, interne trigger
GewichtCirca 280 g (0.6 lb.)
