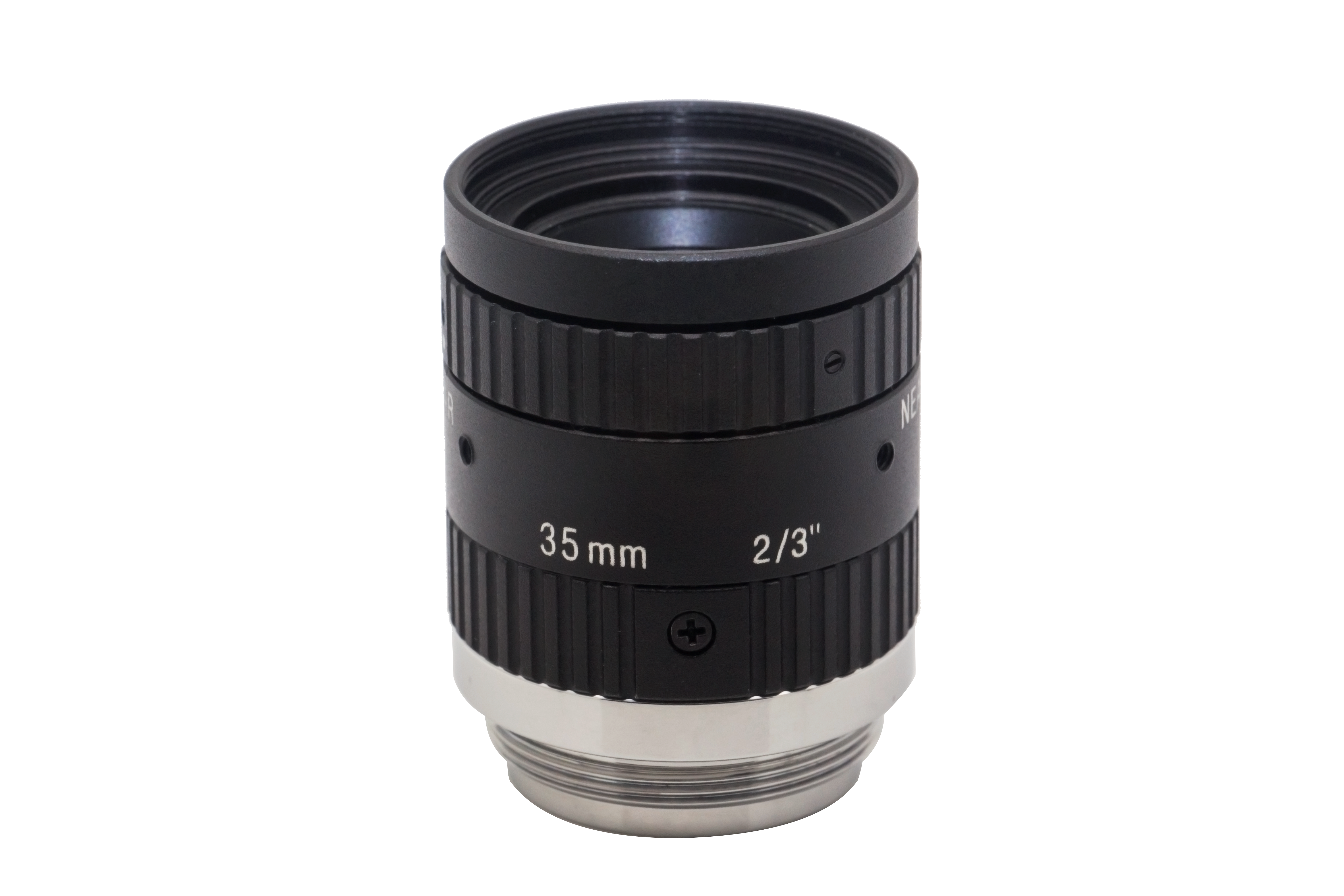

MVL-MF3518M-5MPE

mvl-mf3518m-5mpe

Prijs op aanvraag

Lens

High resolution and consistency of image clarity Lower distortion and higher relative illumination rate Achromatic optical system design, Better imaging performance with color camera Excellent performance at high and low temperature Good optical performance at ultra-short working distance

Aantal

Select variant

SKU: mvl-mf3518m-5mpe

Available stock: -1

Out of stock

Specifications

Certification	RoHS 2.0
Dimension	Φ29 mm × (32.6 mm to 39.3 mm) Φ1.1" × (1.3" to 1.5")
Distortion	0.02%
F-number	F1.8 to F16
Field of View	D (11.1 mm): 17.46° H (8.45 mm): 13.43° V (7.07 mm): 11.26°
Filter thread	M27 × 0.5
Flange back length	17.526 mm
Focal length	35 mm
Focus control	Manual
Image size	Φ11 mm (2/3'')
Iris control	Manual
Minimum object distance	0.25 m
Mount	C-mount
Temperature	–10 °C to 50 °C (14 °F to 122 °F)
Weight	62.8 g (0.1 lb.)
