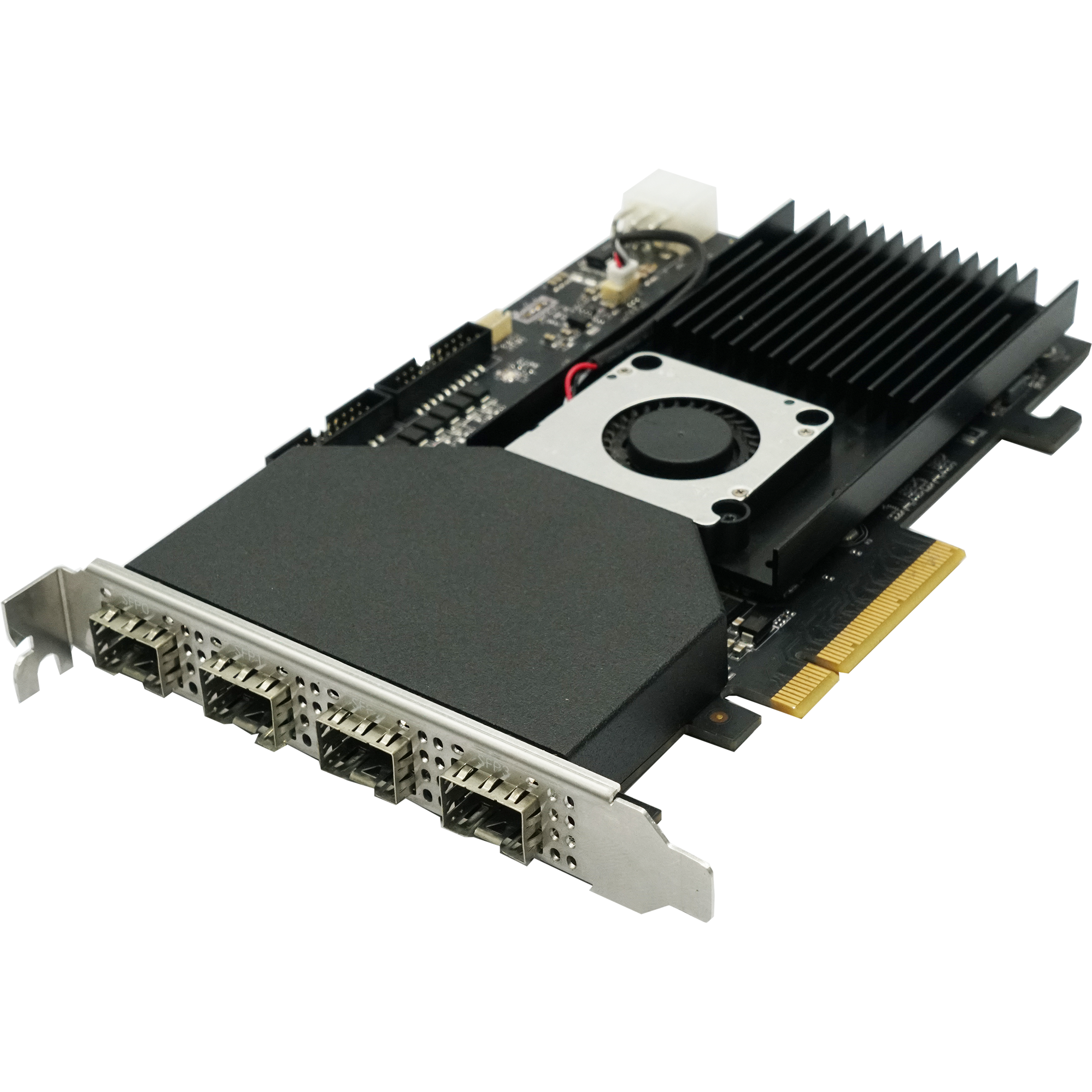

MV-GS1004
mv-gs1004
Vision Components
MV-GS1004 is een Sedeco vision-component op basis van de live catalogusgegevens: MVS-software · Stream: 4 · Standard: GigE Vision V2.0 · Connector: Female header · Indicator: 1. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Select variant
SKU: mv-gs1004
Specifications
| Camera connection speed | 10 Gbps |
|---|---|
| Camera quantity supported | 4 at most (total bandwidth up to 27 Gbps) |
| Camera type supported | 10 GigE industrial camera |
| Certificering | CE, KC |
| Clientsoftware | MVS |
| Connector | Female header |
| Delivery bandwidth | 3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth) |
| Afmetingen | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Luchtvochtigheid | 10% RH to 95% RH (geen condensatie) |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Indicator | 1 |
| Interconnect | PCI-E gen2 × 8 |
| Interface | SFP × 4 |
| On-board memory | 2 GB DDR3-RAM |
| Besturingssysteem | Windows 7/10/11 |
| Pixelformaat | Mono 8/10/10p/12/12p Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed |
| Stroomverbruik | Typ. 20 W |
| Standard | GigE Vision V2.0 |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Temperatuur | Werktemperatuur: 0 °C to 60 °C (32 °F to 140 °F) Opslagtemperatuur: –20 °C to 70 °C (–4 °F to 158 °F) |
