Select variant
SKU: mv-acxp12-hdbnc-hdbnc-hf-3m
Specifications
| Applicable scenario | Drag chain |
|---|---|
| Cable color | Black |
| Cable diameter | 5 mm |
| Cable mechanical | Coaxial |
| Certification | RoHS, UL |
| Connector durability | 500 mating cycles |
| End A connector | HD-BNC |
| End B connector | HD-BNC |
| Jacket | PVC |
| Max. U-type bending cycles | 2 million times |
| Max. voltage | 300 VDC |
| Min. bending radius | 60 mm |
| Packaging | Individual package |
| Working temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
Compare products
Product family

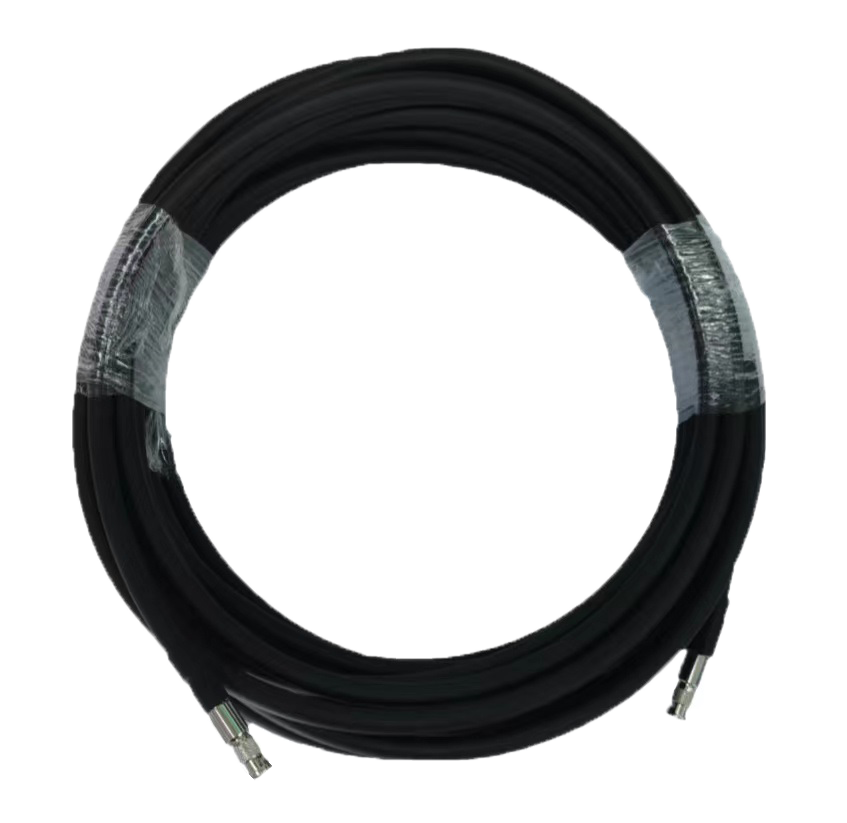

MV-ACXP12 HD-BNC CableSelected variant
MV-ACXP12-HDBNC-HDBNC-HF-3m
mv-acxp12-hdbnc-hdbnc-hf-3m
