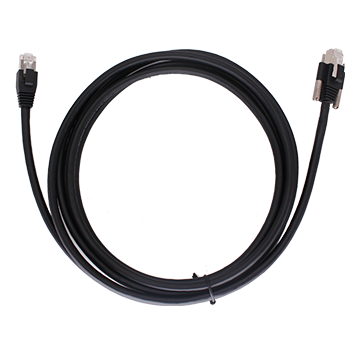

MV-AC10G-RJ45s-RJ45-HF-3m
3 m
mv-ac10g-rj45s-rj45-hf-3m
Vision Components
MV-AC10G-RJ45s-RJ45-HF-3m is een Sedeco vision-component op basis van de live catalogusgegevens: Jacket: PVC · Packaging: Individual package · Cable color: Black · Max. voltage: 30 VDC · Cable diameter: 7.0 mm. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Beschikbare configuraties
- mv-ac10g-rj45s-rj45-hf-3m — 3 m
- mv-ac10g-rj45s-rj45-hf-5m — 5 m
- mv-ac10g-rj45s-rj45-hf-10m — 10 m
Select variant
SKU: mv-ac10g-rj45s-rj45-hf-3m
Specifications
| Applicable scenario | Drag chain |
|---|---|
| Cable color | Black |
| Cable diameter | 7.0 mm |
| Cable mechanical | (26#*1P+AL)*4C+AB |
| Certificering | RoHS,UL |
| Connector durability | >750 cycles |
| End A connector | RJ45 (with locking stud) |
| End B connector | RJ45 |
| Jacket | PVC |
| Max. U-type bending cycles | 5 million keer |
| Max. voltage | 30 VDC |
| Min. bending radius | 84 mm |
| Length | 3 m |
| Packaging | Individual package |
| Working temperature | -20°C~ 75°C |
