Select variant

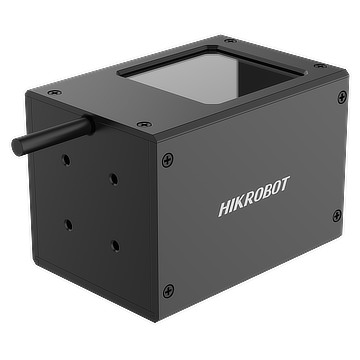

SKU: MV-LCDS-H-30-30-W
Specificaties
| Brand | Hikrobot |
|---|---|
| Cable length | 1 m |
| Category | Light Source |
| Color | White |
| Connector type | SMR-03V-B |
| Diffuse plate included | Included |
| Documents | MV-LCDS-H.zip, MV-LCDS-H_datasheet_20260629.pdf |
| Electrical feature: Connector type | SMR-03V-B |
| Electrical feature: Power | 3.3 W |
| Humidity | 20% RH to 90%RH (no condensation) |
| Irradiation: Safety class | No danger |
| Irradiation: Safety distance | / |
| Material code | 310101555 |
| Mechanical: Cable length | 1 m |
| Mechanical: Diffuse plate included | Included |
| Mechanical: Dimension | 69 mm × 37.9 mm × 38 mm |
| Mechanical: Emitting area dimension | 32.5 mm × 32 mm |
| Mechanical: Humidity | 20% RH to 90% RH (no condensation) |
| Mechanical: Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Mechanical: Weight | 132 g |
| model | MV-LCDS-H-30-30-W |
| Model: Product Model | MV-LCDS-H-30-30-W |
| Model: Type | Coaxial lighting，30*30，white color |
| Color | White |
| Color temperature | 6000K to 7000K |
| Safety class | No danger |
| Variant | Variant 1 |
| Performance: Center illuminance/irradiance | ≥ 20000 lux |
| Performance: Color | White |
| Performance: Color temperature | 6000K to 7000K |
| Performance: Wavelength | / |
| Power | 3.3 W |
| Related products | MV-LW-H-001-1-S, MV-LE100-48W24-2 |
| Series | Hik Light Source |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
Vergelijk producten
Productfamilie
MV-LC Coaxial LightGeselecteerde variant
White · 6000K to 7000K · No danger · Variant 1
MV-LCDS-H-30-30-W
