MV-CL
2048 × 2 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 1

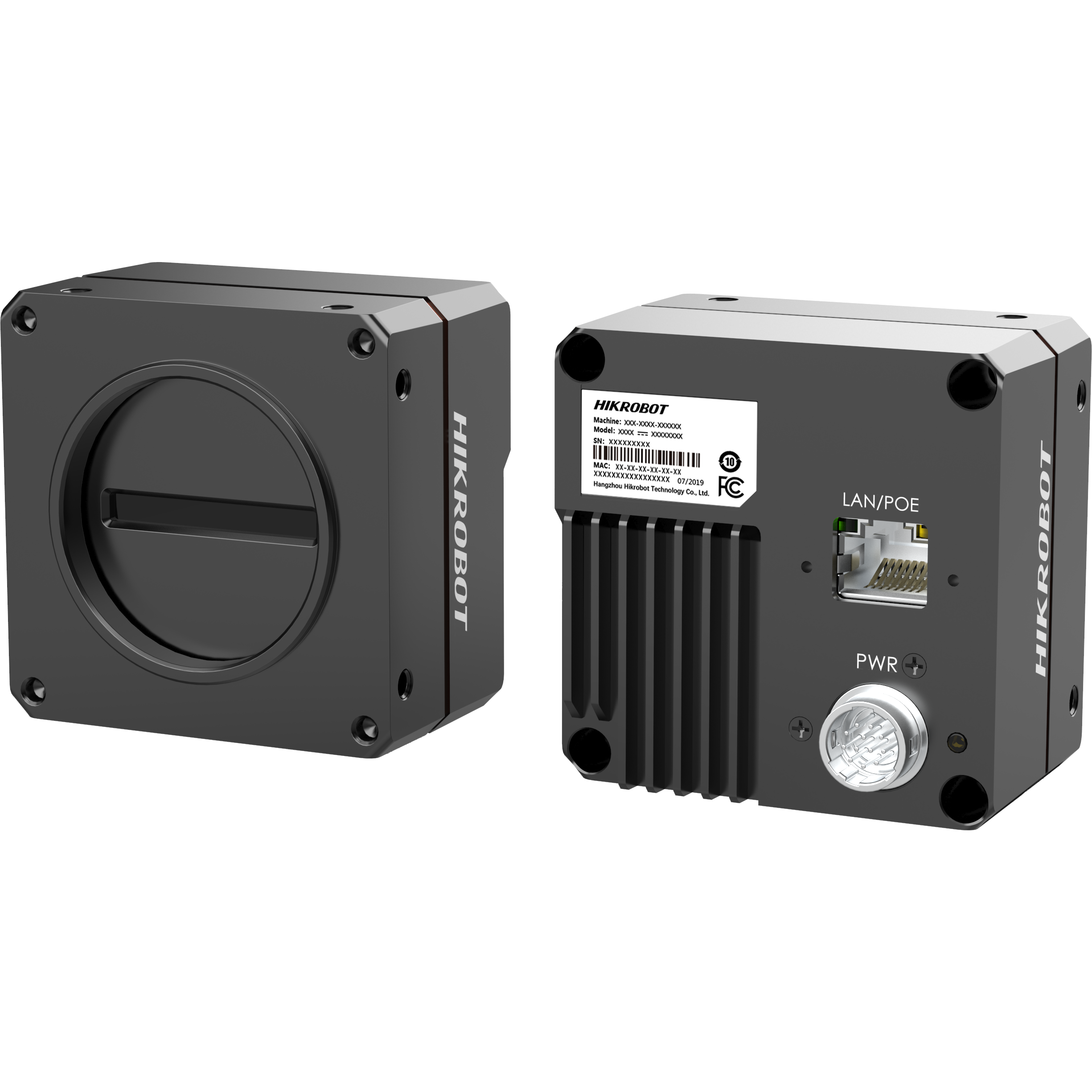

MV-CL022-91GM
Line Scan Camera
MV-CL is een lijnscancamerafamilie voor continu materiaal, brede banen, print, folie en cilindrische oppervlakken. De camera bouwt het beeld lijn voor lijn op terwijl het product beweegt. Kies lijnresolutie, mono of kleur, lijnsnelheid, interface en lensvatting, en stem de opstelling af met lijnlicht en encoder.
Available configurations
- MV-CL022-91GM — 2048 × 2 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 1
- MV-CL022-91GC — 2048 × 2 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 2
- MV-CL024-91GM — 2048 × 4 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 3
- MV-CL024-91GC — 2048 × 4 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 4
- MV-CL042-91GM — 4096 × 2 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 5
- MV-CL042-91GC — 4096 × 2 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 6
- MV-CL042-91CM — 4096 × 2 · Camera Link · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 8
- MV-CL042-91CC — 4096 × 2 · Camera Link · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 10
- MV-CL042-91CM-V2 — 4096 × 2 · Camera Link · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 11
- MV-CL042-91FM — 4096 × 2 · Fiber · M42*1.0, flange focal length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 12
- MV-CL042-91FC — 4096 × 2 · Fiber · M42*1.0, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 13
- MV-CL043-A1GM-V2 — 4096 × 3 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 14
- MV-CL043-A1GC — 4096 × 3 · GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 15
- MV-CL044-91NM — 4096 × 4 · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 16
- MV-CL044-91NC — 4096 × 4 · C-mount · Line trigger, frame trigger, line + frame trigger · Not supported · Variant 17
- mv-cl082-92cm — CL082 · 8192 × 2 · Mono · Camera Link
- MV-CL081-41CM — 8192 × 1 · Camera Link · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 18
- MV-CL081-B0F2M — 8192 × 1 · Fiber F2 · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger · Supports horizontal reverse image output · Variant 19
- mv-cl082-92gm — CL082 · 8192 × 2 · Mono · GigE
- MV-CL082-91F2M-2.0 — 8192 × 2 · Fiber F2 · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 20
- mv-cl082-91f1m — CL082 · 8192 × 2 · Mono · Fiber F1
- MV-CL082-91F1M-2.0 — 8192 × 2 · Fiber F1 · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 21
- mv-cl082-91f2m — CL082 · 8192 × 2 · Mono · Fiber F2
- mv-cl083-92cc — CL083 · 8192 × 3 · Color · Camera Link
- MV-CL082-92CM-V2.0 — 8192 × 2 · Camera Link · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 23
- mv-cl083-92gc — CL083 · 8192 × 3 · Color · GigE
- mv-cl083-91f2c — CL083 · 8192 × 3 · Color · Fiber F2
- MV-CL083-92CC-V2.0 — 8192 × 3 · Camera Link · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 25
- mv-cl084-91cm — CL084 · 8192 × 4 · Mono · Camera Link
- MV-CL083-91F2C-2.0 — 8192 × 3 · Fiber F2 · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 26
- mv-cl084-91gm — CL084 · 8192 × 4 · Mono · GigE
- MV-CL084-91F2M-2.0 — 8192 × 4 · Fiber F2 · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 27
- mv-cl084-91f2m — CL084 · 8192 × 4 · Mono · Fiber F2
- MV-CL084-91Y2M-V2.0 — 8192 × 4 · CoaXPress · M72*0.75, flange back length 12 mm, applicable to F-mount lens via adapter ring · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 28
- mv-cl084-91y2m — CL084 · 8192 × 4 · Mono · CoaXPress
- mv-cl084-91cm-pro — CL084 PRO · 8192 × 16 · Mono · Camera Link
- MV-CL083-B0F2C — 8192 × 3 · Fiber F2 · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger · Supports horizontal reverse image output · Variant 29
- MV-CL08K7-148TM — 8192 × 1 · 10GigE · C-mount · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 30
- mv-cl086-91cc — CL086 · 8192 × 6 · Color · Camera Link
- MV-CL161-41CM — 16384 × 1 · Camera Link · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 32
- mv-cl086-91gc — CL086 · 8192 × 6 · Color · GigE
- MV-CL162-91F2M-2.0 — 16384 × 2 · Fiber F2 · M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 33
- mv-cl086-91cc-pro — CL086 PRO · 8192 × 12 · Color · Camera Link
- MV-CL166-91F2C — 16384 × 12 · Fiber F2 · M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter · Line trigger, frame trigger, line + frame trigger · Supports horizontal reverse image output · Variant 34
- mv-cl162-91cm — CL162 · 16384 × 2 · Mono · Camera Link
- mv-cl162-91f2m — CL162 · 16384 × 2 · Mono · Fiber F2
Select variant
SKU: MV-CL022-91GM
Specifications
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
|---|---|
| Brand | Hikrobot |
| Category | Line Scan Camera |
| Certification | CE, FCC, RoHS, KC |
| Client software | MVS or the third-party software meeting with GigE Vision protocol |
| Compatibility | GigE Vision V2.0, GenICam |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 12-pin Hirose connector provides power and I/O: configurable output and input × 4 (Line 0/1/3/4), supports single-end/differential |
| Dimension | 62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6") |
| Document: Data Sheet | MV-CL022-91GM GigE Line Scan Camera_datasheet_20250902.pdf |
| Document: Drawing | MV-CL022-91GM Drawing.zip |
| Document: Firmware | MV_CL022_91GM_S1_STD_V3.4.73_260206_HIKROBOT.zip |
| Document: User Manual | UD45617B_GigE Line Scan Camera_User Manual_V3.9.2_20260206.pdf |
| Documents | MV_CL022_91GM_S1_STD_V3.4.73_260206_HIKROBOT.zip, MV-CL022-91GM GigE Line Scan Camera_datasheet_20250902.pdf, MV-CL022-91GM Drawing.zip, UD45617B_GigE Line Scan Camera_User Manual_V3.9.2_20260206.pdf, MV_CL022_91GC_STD_V3.4.73_260206_HIKROBOT.zip, MV-CL022-91GC Drawing.zip, MV-CL022-91GC GigE Line Scan Camera_datasheet_20250902.pdf, MV_CL024_91GM_STD_V4.0.51_251229_HIKROBOT.zip, MV-CL024-91GM Drawing.zip, MV-CL024-91GM GigE Line Scan Camera_datasheet_20250905.pdf, MV_CL024_91GC_STD_V4.0.51_251229_HIKROBOT.zip, MV-CL024-91GC GigE Line Scan Camera_datasheet_20250905.pdf, MV-CL024-91GC Drawing.zip, MV_CL042_91GM_S1_STD_V3.4.73_260206_HIKROBOT.zip, MV-CL042-91GM Drawing.zip, MV-CL042-91GM GigE Line Scan Camera_datasheet_20250829.pdf, MV_CL042_91GC_STD_V3.4.73_260206_HIKROBOT.zip, MV-CL042-91GC Drawing.zip, MV-CL042-91GC GigE Line Scan Camera_datasheet_20250904.pdf, MV_CL042_91CM_S1_STD_V3.5.0_240918_HIKROBOT.zip, UD44284B_Camera Link Line Scan Camera User Manual_V3.0.0_20250904.pdf, MV-CL042-91CM Camera Link Line Scan Camera_datasheet_20250827.pdf, MV-CL042-91CM Drawing.zip, MV_CL042_91CC_S1_NEU_V3.5.0_241129.zip, MV-CL042-91CC Drawing.zip, MV-CL042-91CC Camera Link Line Scan Camera_datasheet_20250827.pdf, MV_CL042_91CM_V2_STD_V4.0.5_230721_HIKROBOT.zip, MV-CL042-91CM-V2 Drawing.zip, MV-CL042-91CM-V2 Camera Link Line Scan Camera_datasheet_20250828.pdf, MV_CL042_91FM_STD_V4.1.22_250808_HIKROBOT.zip, MV-CL042-91FM.zip, MV-CL042-91FM XoF Mono Line Scan Camera_datasheet_20250728.pdf, UD43969B_XoFLink Line Scan Camera_User Manual_V2.1.0_20250816.pdf, MV_CL042_91FC_XOF_STD_V4.1.1_250328_HIKROBOT.zip, MV-CL042-91FC Drawing.zip, MV-CL042-91FC XoF Color Line Scan Camera_datasheet_20250827.pdf, MV_CL043_A1GM_V2_STD_V4.0.48_250325_HIKROBOT.zip, MV-CL043-A1GM Drawing.zip, MV-CL043-A1GM GigE Line Scan Camera_datasheet_20250904.pdf, MV_CL043_A1GC_STD_V4.0.48_250325_HIKROBOT.zip, MV-CL043-A1GC.zip, MV-CL043-A1GC GigE Line Scan Camera_datasheet_20250829.pdf, MV_CL044_91NM_STD_V4.1.4_250711_HIKROBOT.zip, UD42118B_GigE Line Scan Camera User Manual_V4.0.1_20250317.pdf, MV-CL044-91NM.rar, MV-CL044-91NM GigE Line Scan Camera_datasheet_20250930.pdf, MV_CL044_91NC_STD_V4.1.4_250711_HIKROBOT.zip, MV-CL044-91NC.rar, MV-CL044-91NC GigE Line Scan Camera_datasheet_20250930.pdf, MV_CL081_41CM_STD_V2.0.14_221122_HIKROBOT.zip, MV-CL081-41CM Drawing.zip, MV-CL081-41CM Camera Link Line Scan Camera_datasheet_20250828.pdf, MV_CL081_B0F2M_STD_V4.1.20_251029_HIKROBOT.zip, MV-CL081-B0F2M.zip, MV-CL081-B0F2M XoFLink Line Scan Camera_datasheet_20260807.pdf, MV_CL082_91F2M_HS_STD_V4.1.1_250328_HIKROBOT.zip, MV-CL082-91F2M V2.0.zip, MV-CL082-91F2M V2.0 XoF Mono Line Scan Camera_datasheet_20260417.pdf, MV_CL082_91F1M_HS_STD_V4.1.1_250328_HIKROBOT.zip, MV-CL082-91F1M V2.0 XoF Mono Line Scan Camera_datasheet_20260417.pdf, MV-CL082-91F1M V2.0.zip, MV_CL082_92GM_F_STD_V4.0.48_250325_HIKROBOT.zip, MV-CL082-92GM V2.0 GigE Line Scan Camera_datasheet_20260417.pdf, MV-CL082-92GM V2.0.zip, MV_CL082_92CM_STD_V4.0.1_220908_HIKROBOT.zip, MV-CL082-92CM V2.0.zip, MV-CL082-92CM V2.0 Camera Link Line Scan Camera_datasheet_20260416.pdf, MV_CL083_92GC_F_STD_V4.0.48_250325_HIKROBOT.zip, MV-CL083-92GC V2.0.zip, MV-CL083-92GC V2.0 GigE Line Scan Camera_datasheet_20260417.pdf, MV_CL083_92CC_STD_V4.0.1_221206_HIKROBOT.zip, MV-CL083-92CC V2.0 Camera Link Line Scan Camera_datasheet_20260416.pdf, MV-CL083-92CC V2.0.zip, MV_CL083_91F2C_HS_STD_V4.1.2_260526_HIKROBOT.zip, MV-CL083-91F2C V2.0.zip, MV-CL083-91F2C V2.0 XoF Line Scan Camera_datasheet_20260416.pdf, MV-CL084-91F2M V2.0.zip, MV-CL084-91F2M V2.0 XoF Mono Line Scan Camera_datasheet_20260416.pdf, MV_CL084_91Y2M_STD_V4.1.0_240924_HIKROBOT.zip, MV-CL084-91Y2M V2.0 CoaXPress Mono Line Scan Camera_datasheet_20260422.pdf, MV-CL084-91Y2M V2.0.zip, UD48187B_CoaXPress Line Scan Camera_User Manual_V1.0.2_20260914.pdf, MV_CL083_B0F2C_STD_V4.1.21_251029_HIKROBOT.zip, MV-CL083-B0F2C.zip, MV-CL083-B0F2C XoFLink Line Scan Camera_datasheet_20250928.pdf, MV_CL08K7_148TM_STD_V4.1.34_260824_HIKROBOT.zip, UD47700B_10 GigE Line Scan Camera User Manual_V1.0.0_20260824.pdf, MV-CL08K7-148TM 10 GigE Line Scan Camera_datasheet_20260805.pdf, MV-CL08K7-148TM.zip, MV_CL161_41CM_STD_V2.0.14_221122_HIKROBOT.zip, MV-CL161-41CM Camera Link Line Scan Camera_datasheet_20250826.pdf, MV-CL161-41CM Drawing.zip, MV_CL162_91F2M_V2_STD_V4.1.33_260317_HIKROBOT.zip, MV-CL162-91F2M V2.0.zip, MV-CL162-91F2M V2.0 XoF Mono Line Scan Camera_datasheet_20260416.pdf, MV_CL166_91F2C_4TDI_STD_V4.1.2_260115_HIKROBOT.zip, MV-CL166-91F2C XoF Line Scan Camera_datasheet_20250829.pdf, MV-CL166-91FC Drawing.zip |
| Dynamic range | 63.4 dB |
| Electrical feature: Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Electrical feature: Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Electrical feature: Power consumption | Typ. 5 W @ 12 VDC |
| Electrical feature: Power supply | 12 VDC to 24 VDC, supports PoE |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Exposure time | 5 μs to 10 ms |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Gain | Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 × |
| General: Certification | CE, RoHS, KC |
| General: Client software | MVS or the third-party software meeting with GigE Vision protocol |
| General: Compatibility | GigE Vision V2.0, GenICam |
| General: Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Humidity | 5% to 90% RH, non-condensing |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Lens mount | M42*1.0, flange focal length 12 mm, applicable to F-mount, C-mount and others via lens adapter |
| Material code | 306301480 |
| Mechanical: Dimension | 62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6") |
| Mechanical: Humidity | 5% RH to 90% RH (no condensation) |
| Mechanical: Ingress protection | IP40 (under proper lens installation and wiring) |
| Mechanical: Lens mount | M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via lens adapter |
| Mechanical: Temperature | Working temperature: –20 °C to 55 °C (32 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Mechanical: Weight | Approx. 280 g (9.9 lb.) |
| model | MV-CL022-91GM |
| Model: Product Model | MV-CL022-91GM |
| Model: Type | 2K GigE Line Scan Cameras，Mono |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS |
| Data interface | GigE |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Lens mount | C-mount |
| Resolution | 2048 × 2 |
| Reverse image | Supports horizontal reverse image output |
| Variant | Variant 1 |
| Performance: Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Performance: Dynamic range | 63.4 dB |
| Performance: Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Performance: Exposure time | 5 μs to 10 ms |
| Performance: External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Performance: Gain | 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 × |
| Performance: Max. line rate | Standard mode: 56 kHz @ Mono 8, 28 kHz @ Mono 10/12 High-bandwidth mode: 100 kHz @ Mono 8/10/12 |
| Performance: Mono | Mono |
| Performance: Pixel format | Mono 8/10/12 |
| Performance: Pixel size | 14 μm × 14 μm |
| Performance: Resolution | 2048 × 1 |
| Performance: Reverse image | Supports horizontal reverse image output |
| Performance: Sensor type | CMOS |
| Performance: SNR | 39.4 dB |
| Performance: Trigger mode | External trigger, internal trigger |
| Pixel size | 14 μm |
| Power supply | 12 VDC to 24 VDC, supports PoE |
| Related products | MV-GE1100 |
| Resolution | 2048 × 1 |
| Reverse image | Supports horizontal reverse image output |
| Sensor type | CMOS |
| Series | CL Line Scan Camera |
| SNR | 39.4 dB |
| Temperature | Working temperature: -20 °C to 55 °C (32 °F to 131 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F) |
| Trigger mode | External trigger, internal trigger |
| Weight | Approx. 280 g (9.9 lb.) |
