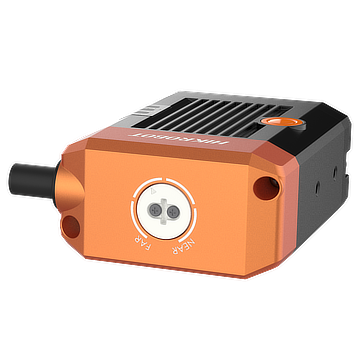

MV-SC2004EM-08S-WBN
M12-mount, adjusting focus manually supported · 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") · White LED lamp · 08S-WBN
mv-sc2004em-08s-wbn
Smart Camera
De Hikrobot MV-SC2004EM-08S-WBN (SC smart camera) is een smart camera met 704 × 540, mono. CMOS, global shutter (1/2.9").
Max. framesnelheid 60 fps. Data-interface Fast Ethernet (100 Mbit/s).
On-device vision: tools en beslissingen op de camera, bruikbaar wanneer de inspectielogica dicht bij de cel moet blijven zonder dedicated PC-visionhost per station. Mono voor luminantie-gebaseerde metrologie, aanwezigheid en de meeste defectalgoritmen onder gestuurde belichting.
Beschikbare configuraties
- mv-sc2004em-08s-wbn — M12-mount, adjusting focus manually supported · 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") · White LED lamp · 08S-WBN
- mv-sc2004em-12s-wbn — M12-mount, adjusting focus manually supported · 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") · White LED lamp · 12S-WBN
- mv-sc2004em-15s-wbn — M12-mount, adjusting focus manually supported · 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") · White LED lamp · 15S-WBN
- mv-sc2004em-06s-wbn-mini — M10-mount, adjusting focus manually supported · 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") · White LED lamp × 4 · 06S-WBN-MINI
Select variant
SKU: mv-sc2004em-08s-wbn
Specifications
| Certificering | CE, KC |
|---|---|
| Clientsoftware | SCMVS |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Datainterface | Fast Ethernet (100 Mbit/s) |
| Dynamisch bereik | 74 dB |
| Belichtingstijd | 16 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Beschermingsgraad | IP65 (under proper installation of lens and wiring) |
| Lensdop | Transparante lensdop |
| Max. framesnelheid | 60 fps |
| Mono/kleur | Mono |
| Dimension | 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") |
| Lensvatting | M12-mount, adjusting focus manually supported |
| Lichtbron | Witte LED lamp |
| Model | 08S-WBN |
| Pixelformaat | Mono 8 |
| Pixelgrootte | 6.9 μm × 6.9 μm |
| Voeding | 12 VDC to 24 VDC |
| Resolutie | 704 × 540 |
| Sensorgrootte | 1/2.9" |
| Sensortype | CMOS, global shutter |
| SNR | 41 dB |
| Oplossingscapaciteit | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 70 °C (–22 °F to 158 °F) |
