MV-IDH7000B-10NR-07RN
Not specified · Not specified · 3 mil · 10NR-07RN
mv-idh7000b-10nr-07rn

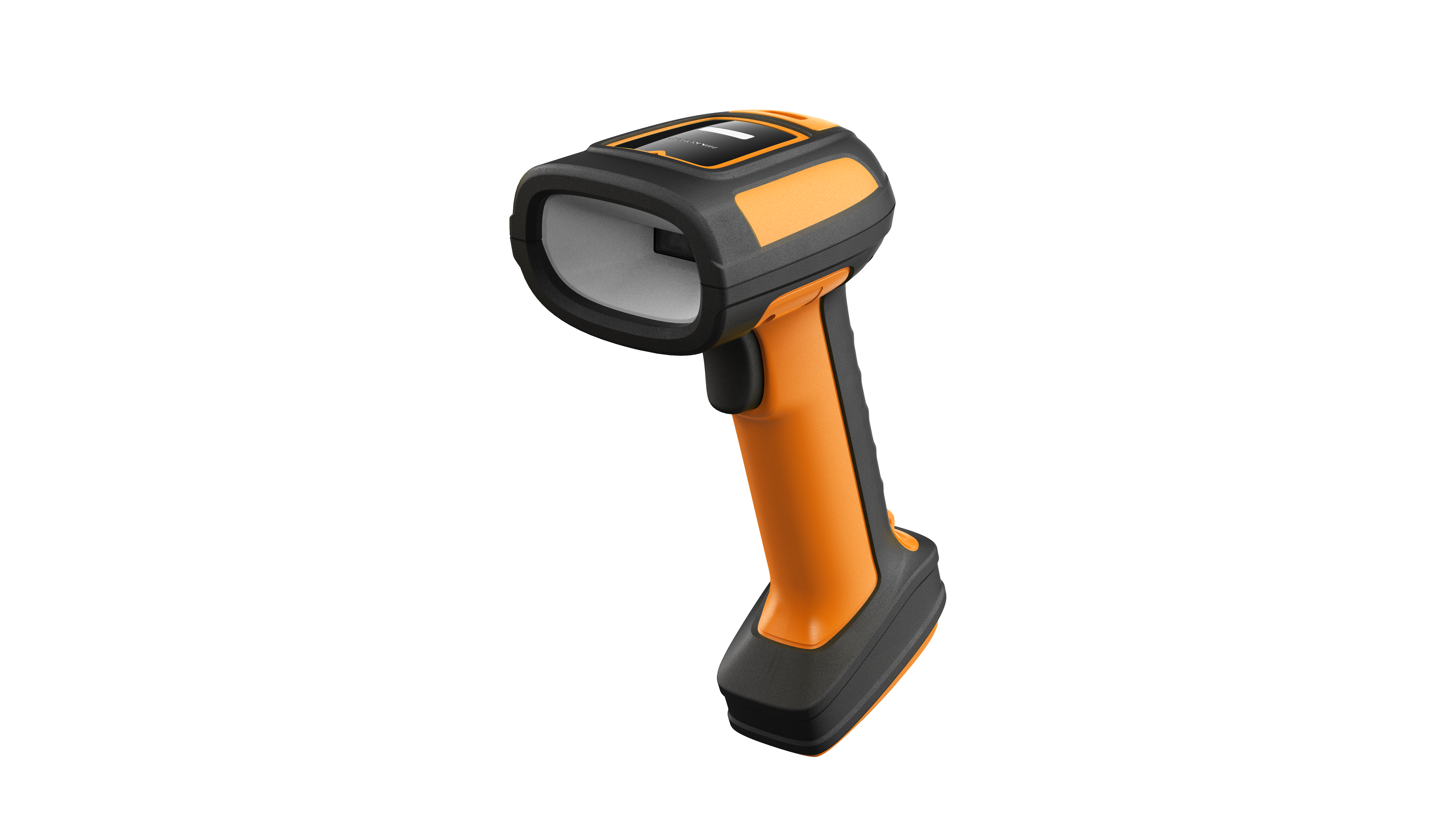

Handheld Code Reader
MV-IDH7000B-10NR-07RN is een Sedeco handheld code reader op basis van de live catalogusgegevens: CMOS · 1280 × 800 · 6.7 mm brandpuntsafstand · Direct lighting: white LED Diffused reflection lighting: red LED · IP40 · IDMVS-software. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Beschikbare configuraties
- mv-idh7000b-10nr-07rn — Not specified · Not specified · 3 mil · 10NR-07RN
- mv-idh7000b-10sr-07rn — Not specified · Not specified · Not specified · 10SR-07RN
- mv-idh7000b-10nr-07rn-ls — Fast Ethernet (100 Mbit/s), RS-232, DC terminal · 4 h · 3 mil · 10NR-07RN-LS
- mv-idh7000b-10nr-07rn-us — USB 2.0, DC terminal2 · Adapter: 4 h, USB: 8 h · 3 mil · 10NR-07RN-US
- mv-idh7000b-10sr-07rn-ls — Fast Ethernet (100 Mbit/s), RS-232, DC terminal · 4 h · 3 mil · 10SR-07RN-LS
- mv-idh7000b-10sr-07rn-us — USB 2.0, DC terminal2 · Adapter: 4 h, USB: 8 h · 3 mil · 10SR-07RN-US
- mv-idh7000b-10er-07rn-us-pm — USB 2.0, DC terminal2 · Adapter: 4 h, USB: 8 h · 5 mil · 10ER-07RN-US-PM
- mv-idh7000b-10hhd-07rn-ls-pm — Fast Ethernet (100 Mbit/s), RS-232, DC terminal · 4 h · 3 mil · 10HHD-07RN-LS-PM
- mv-idh7000b-10hhd-07rn-us-pm — USB 2.0, DC terminal2 · Adapter: 4 h, USB: 8 h · 3 mil · 10HHD-07RN-US-PM
Select variant
SKU: mv-idh7000b-10nr-07rn
Specifications
| Richtsysteem | Cross laser aiming |
|---|---|
| Ambient illumination | 0 lux to 100000 lux |
| Battery | 3150 mAh |
| Certificering | CE, KC |
| Clientsoftware | IDMVS |
| Communication mode | Bluetooth BT 5.0, BLE |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Afmetingen | 73.4 mm × 104 mm × 215.2 mm (2.9" × 4.1" × 8.5") |
| Endurance | 13 h (interval scanning, once in 2 seconds) |
| Field of view | Horizontal 31°, vertical 20° |
| Brandpuntsafstand | 6.7 mm |
| Luchtvochtigheid | Werktemperatuur: –10 °C to 50 °C (14 °F to 122 °F) Opslagtemperatuur: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Beschermingsgraad | IP40 |
| Laser safety class | Laser 2 |
| Lichtbron | Direct lighting: Witte LED Diffused reflection lighting: red LED |
| Maximum power | 1 mW |
| Charging time | Niet gespecificeerd |
| Datainterface | Niet gespecificeerd |
| Min. nauwkeurigheid | 3 mil |
| Model | 10NR-07RN |
| Prompt | LED indicator, buzzer, vibrator |
| Pulse width | 8 ms |
| Resolutie | 1280 × 800 |
| Sensortype | CMOS |
| Symbol contrast | 20% |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Temperatuur | Werktemperatuur: –10 °C to 50 °C (14 °F to 122 °F) Opslagtemperatuur: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Wavelength | 650 nm |
| Gewicht | Circa 410 g (0.9 lb.) |
| Wireless range | 100 m (open range) |
