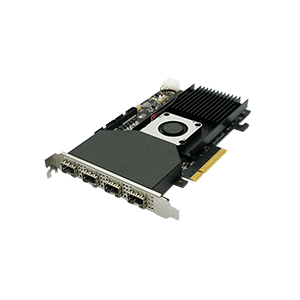

MV-GS1004F
mv-gs1004f
Vision Components
MV-GS1004F is een Sedeco vision-component op basis van de live catalogusgegevens: 2LC fiber port · MVS-software · Stream: 4 · Standard: XoFLink · Connector: Female header. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Select variant
SKU: mv-gs1004f
Specifications
| Camera connection speed | 10 Gbps for one port, total bandwidth up to 27 Gbps |
|---|---|
| Camera quantity supported | 4 at most |
| Camera type supported | XoF fiber port line scan camera |
| Certificering | CE, KC, RoHS |
| Clientsoftware | MVS |
| Connector | Female header |
| Datainterface | 2LC fiber port |
| Delivery bandwidth | 4000 MB/s (max. transmission bandwidth) 3200 MB/s (sustained transmission bandwidth) |
| Afmetingen | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Luchtvochtigheid | 10% RH to 95% RH (geen condensatie) |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Indicator | 1 |
| Interconnect | PCI-E gen2 × 8 |
| On-board memory | 2 GB DDR3L |
| Besturingssysteem | Windows 7/10/11 |
| Stroomverbruik | Typ. 20 W |
| SFP+ module | SFP+ × 4 |
| Standard | XoFLink |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Temperatuur | Werktemperatuur: 0 °C to 60 °C (32 °F to 140 °F) Opslagtemperatuur: –20 °C to 70 °C (–4 °F to 158 °F) |
