MV-CU016-10GC
65.8 fps @ 1440 × 1080 Bayer RG 8
mv-cu016-10gc
Area Scan Camera

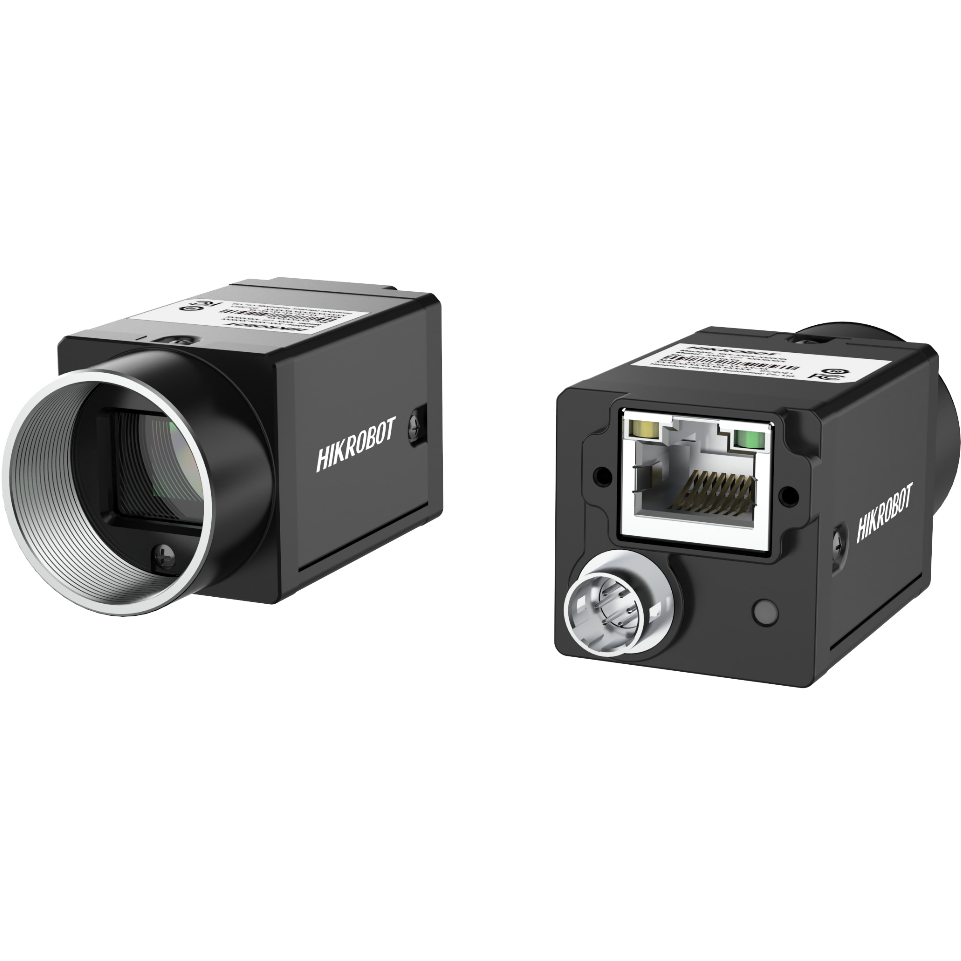

De Hikrobot MV-CU016-10GC (CU-serie) is een area-scancamera met global shutter op 1440 × 1080. Sensorformaat 1/2.9", pixelpitch 3.45 μm × 3.45 μm.
Sensorvarianten: Sony® IMX296. Framesnelheid hangt van de gekozen pixelmodus af (o.a. 65.8 fps @ 1440 × 1080 Bayer RG 8). Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lensmount: C-mount.
Bayer/kleur wanneer chromatische informatie nodig is; mono wanneer contrast, metrologie of codes onder gecontroleerde belichting leidend zijn.
Beschikbare configuraties
- mv-cu016-10gc — 65.8 fps @ 1440 × 1080 Bayer RG 8
- mv-cu016-10gm — 65.8 fps @ 1440 × 1080 Mono 8
Select variant
SKU: mv-cu016-10gc
Specifications
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | Gigabit Ethernet, compatible with Fast Ethernet |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Digitale I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Afmetingen | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Dynamisch bereik | 74 dB |
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Belichtingstijd | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Gain | 0 dB to 24 dB |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Beschermingsgraad | IP30 (bij correcte lensmontage en bedrading) |
| Lensvatting | C-mount |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Max. framesnelheid | 65.8 fps @ 1440 × 1080 Bayer RG 8 |
| Pixelgrootte | 3.45 μm × 3.45 μm |
| Stroomverbruik | Typ. 2 W@ 12 VDC |
| Voeding | 9 VDC to 24 VDC, PoE is optional |
| Resolutie | 1440 × 1080 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Sony® IMX296 |
| Sensorgrootte | 1/2.9" |
| Sensortype | CMOS, global shutter |
| SNR | 41 dB |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 100 g (0.2 lb.) |
