MV-CS040-A0UC
90.1 fps @ 2048 × 2048 Bayer GB 8
mv-cs040-a0uc
Area Scan Camera

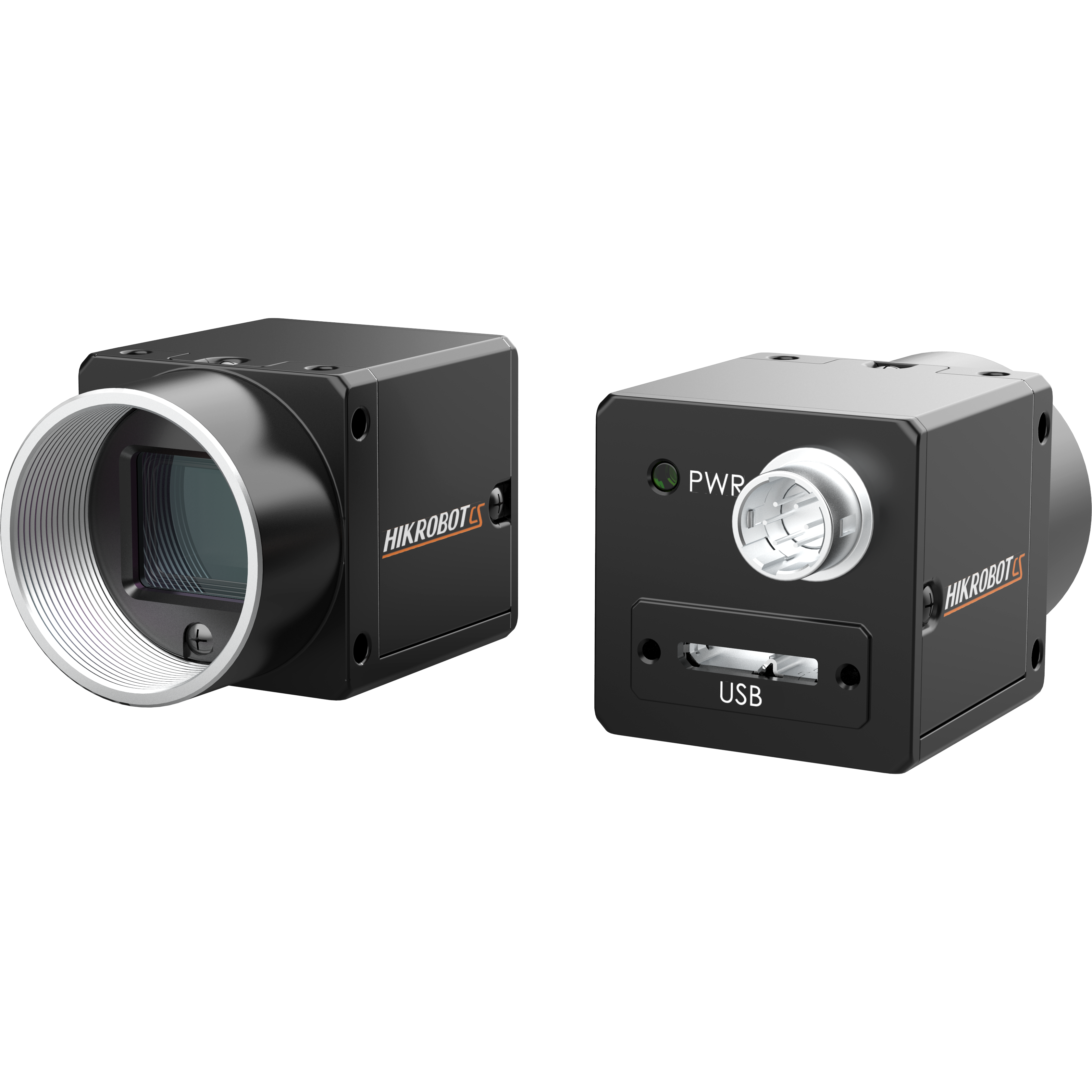

De Hikrobot MV-CS040-A0UC (CS-serie) is een area-scancamera met global shutter op 2048 × 2048. Sensorformaat 1", pixelpitch 5.5 μm × 5.5 μm.
Framesnelheid hangt van de gekozen pixelmodus af (o.a. 90.1 fps @ 2048 × 2048 Bayer GB 8). Interface: USB3.0, compatible with USB2.0. Lensmount: C-mount.
Bayer/kleur wanneer chromatische informatie nodig is; mono wanneer contrast, metrologie of codes onder gecontroleerde belichting leidend zijn.
Beschikbare configuraties
- mv-cs040-a0uc — 90.1 fps @ 2048 × 2048 Bayer GB 8
- mv-cs040-a0um — 90.1 fps @ 2048 × 2048 Mono 8
Select variant
SKU: mv-cs040-a0uc
Specifications
| Certificering | CE, RoHS, KC |
|---|---|
| Clientsoftware | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Compatibiliteit | USB3 Vision, GenICam |
| Datainterface | USB3.0, compatible with USB2.0 |
| Digitale I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Afmetingen | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Dynamisch bereik | 59.7 dB |
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Belichtingstijd | 30 μs to 10 sec |
| Gain | 0 dB to 12 dB |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Lensvatting | C-mount |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS |
| Max. framesnelheid | 90.1 fps @ 2048 × 2048 Bayer GB 8 |
| Pixelgrootte | 5.5 μm × 5.5 μm |
| Stroomverbruik | Typ. 2.4 W@ 5 VDC (USB3.0 provides power supply) |
| Voeding | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Resolutie | 2048 × 2048 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensorgrootte | 1" |
| Sensortype | CMOS, global shutter |
| SNR | 39.6 dB |
| Temperatuur | Werktemperatuur: -30 °C to 60 °C (-22 °F to 140 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 88 g (0.2 lb.) |
