MV-CS013-60GN

mv-cs013-60gn

Area Scan Camera

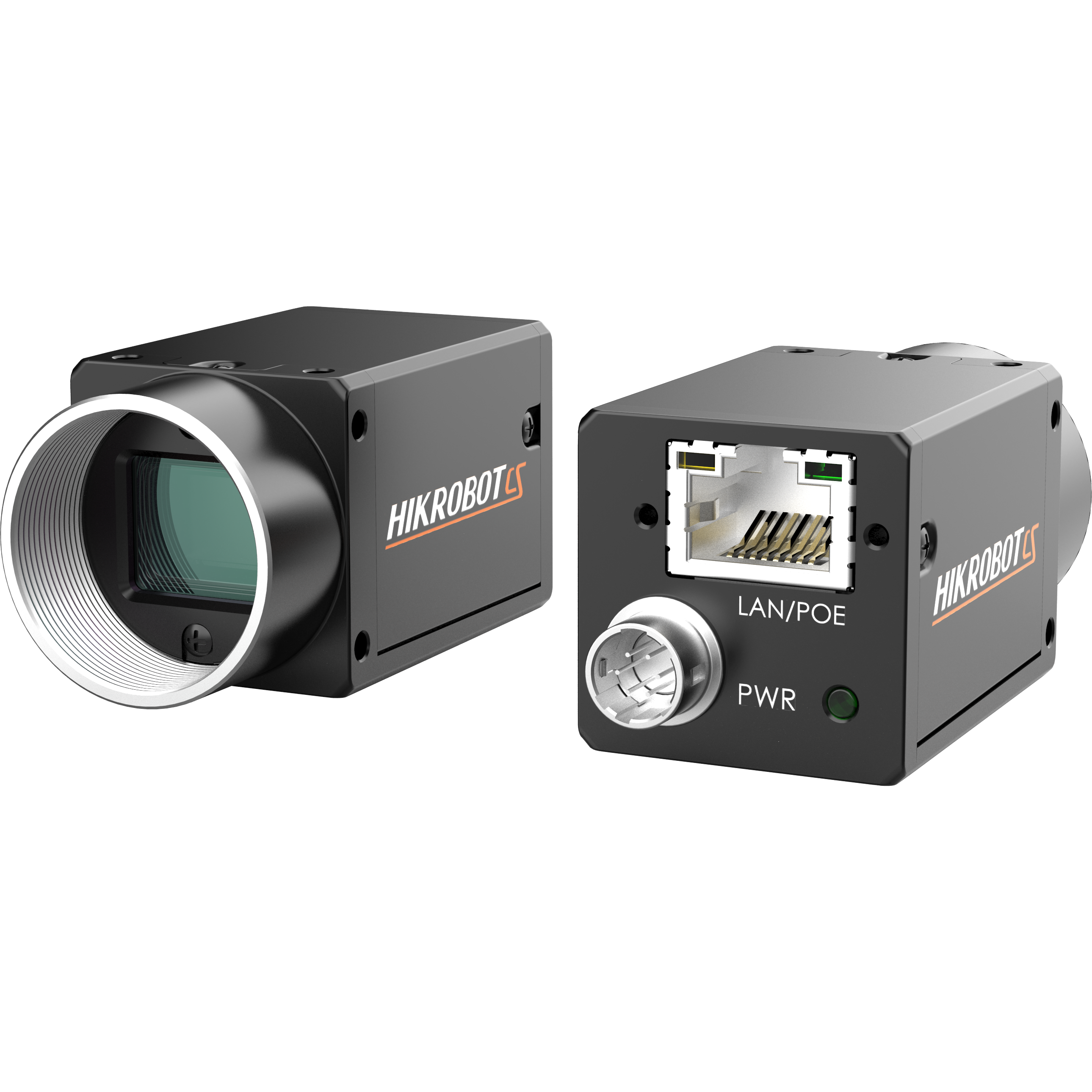

De Hikrobot MV-CS013-60GN (CS-serie) is een area-scancamera met global shutter op 1224 × 1024. Sensorformaat 2/3", pixelpitch 6.9 μm × 6.9 μm. Sensorvarianten: Stacked BSI. Framesnelheid volgens datasheet tot 59.2 fps @ 1224 × 1024 Mono 8. Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lensmount: C-mount.

Select variant

SKU: mv-cs013-60gn

Specifications

BinningNot supported
CertificeringCE, RoHS, KC
ClientsoftwareMVS or third-party software conform het GigE Vision-protocol
CompatibiliteitGigE Vision V2.0, GenICam
DatainterfaceGigabit Ethernet, compatible with Fast Ethernet
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Digitale I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Afmetingen29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Dynamisch bereik73.9 dB
BelichtingsmodusOff/Once/Continuous exposure mode
Belichtingstijd30 μs to 10 sec
Gain0 dB to 20 dB
Luchtvochtigheid20% to 95% RH, niet-condenserend
BeschermingsgraadIP40 (bij correcte lensmontage en bedrading)
LensvattingC-mount
Max. framesnelheid59.2 fps @ 1224 × 1024 Mono 8
Mono/kleurNear-infrared
Besturingssysteem32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
PixelformaatMono 8/10/10Packed/12/12Packed
Pixelgrootte6.9 μm × 6.9 μm
StroomverbruikTyp. 1.9 W@ 12 VDC
Voeding9 VDC to 24 VDC, supports PoE
Resolutie1224 × 1024
SpiegelbeeldSupports horizontal and vertical reverse image output
SensormodelStacked BSI
Sensorgrootte2/3"
SensortypeCMOS, global shutter
SNR42.4 dB
TemperatuurWerktemperatuur: -30 °C to 60 °C (-22 °F to 140 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F)
GewichtCirca 100 g (0.2 lb.)
