MV-CI013-GS-NN
91 fps @ 1280 × 1024 Mono 8 · CE, RoHS, KC · 20% to 95% RH, non-condensing · NN
mv-ci013-gs-nn
Area Scan Camera

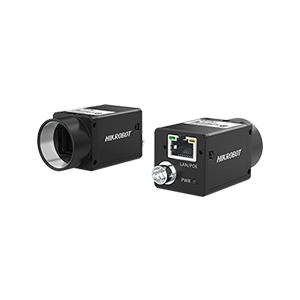

De Hikrobot MV-CI013-GS-NN is een area-scancamera op 1280 × 1024. Sensorformaat 1/2", pixelpitch 5 μm × 5 μm.
Sensorvarianten: Sony® IMX990. Framesnelheid hangt van de gekozen pixelmodus af (o.a. 91 fps @ 1280 × 1024 Mono 8). Lensmount: C-mount.
Mono-uitvoering voor maximale luminantie-resolutie en contrast.
Beschikbare configuraties
- mv-ci013-gs-nn — 91 fps @ 1280 × 1024 Mono 8 · CE, RoHS, KC · 20% to 95% RH, non-condensing · NN
- mv-ci013-gs-tf — 91 fps @ 1280 × 1024 Mono 8 · CE, RoHS, KC · 20% to 95% RH, non-condensing · TF
- mv-ci013-gs-th — 91 fps @ 1280 × 1024 Mono 8 · CE, RoHS · 20% RH to 95% RH (no condensation) · TH
Select variant
SKU: mv-ci013-gs-nn
Specifications
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
|---|---|
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Decimation | Supports 1 × 1, 2 × 2 |
| Dynamisch bereik | 56 dB |
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Belichtingstijd | UltraShort exposure mode: 3 μs to 7 μs Standard exposure mode: 8 μs to 0.1 sec |
| Gain | 0 dB to 18 dB |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Lensvatting | C-mount |
| Certificering | CE, RoHS, KC |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Max. framesnelheid | 91 fps @ 1280 × 1024 Mono 8 |
| Model | NN |
| Pixelformaat | Mono 8/10/10Packed/12/12Packed |
| Pixelgrootte | 5 μm × 5 μm |
| Resolutie | 1280 × 1024 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Sony® IMX990 |
| Sensorgrootte | 1/2" |
| Sensortype | InGaAs |
| SNR | 52.2 dB |
