MV-CI003-GL-N6
MVS or third-party software meeting with GigE Vision Protocol · 20% to 90% RH, non-condensing · < 35 mk (F1.0, 25 °C) · N6
mv-ci003-gl-n6

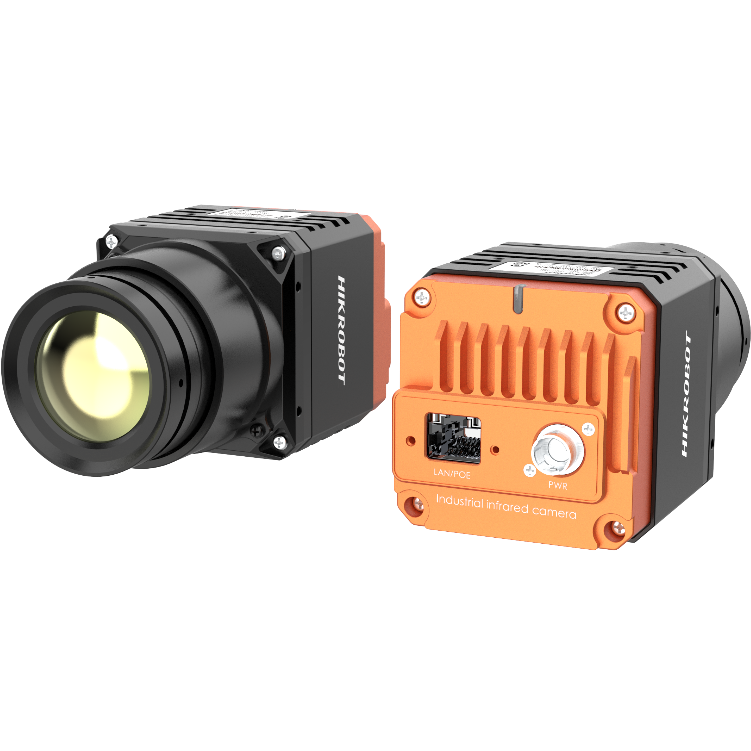

Area Scan Camera
De Hikrobot MV-CI003-GL-N6 is een area-scancamera op 640 × 512. Sensorformaat, pixelpitch 17 μm.
Framesnelheid volgens datasheet tot 50 fps @ 640 × 512. Interface: Gigabit Ethernet, compatible with Fast Ethernet.
Beschikbare configuraties
- mv-ci003-gl-n6 — MVS or third-party software meeting with GigE Vision Protocol · 20% to 90% RH, non-condensing · < 35 mk (F1.0, 25 °C) · N6
- mv-ci003-gl-t6 — MVS · 20% to 80% RH, non-condensing · < 50 mk (F1.0, 30 °C) · T6
- mv-ci003-gl-n15 — MVS or third-party software meeting with GigE Vision Protocol · 20% to 90% RH, non-condensing · < 35 mk (F1.0, 25 °C) · N15
- mv-ci003-gl-n25 — MVS or third-party software meeting with GigE Vision Protocol · 20% to 90% RH, non-condensing · < 35 mk (F1.0, 25 °C) · N25
- mv-ci003-gl-n35 — MVS or third-party software meeting with GigE Vision Protocol · 20% to 90% RH, non-condensing · < 35 mk (F1.0, 25 °C) · N35
Select variant
SKU: mv-ci003-gl-n6
Specifications
| Certificering | CE, RoHS, KC |
|---|---|
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | Gigabit Ethernet, compatible with Fast Ethernet |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Max. framesnelheid | 50 fps @ 640 × 512 |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Luchtvochtigheid | 20% to 90% RH, niet-condenserend |
| NETD | < 35 mk (F1.0, 25 °C) |
| Model | N6 |
| Pixelgrootte | 17 μm |
| Resolutie | 640 × 512 |
| Sensortype | Vanadium oxide uncooled detector |
