MV-CH800-60TM-M58S-NN
mv-ch800-60tm-m58s-nn
Area Scan Camera

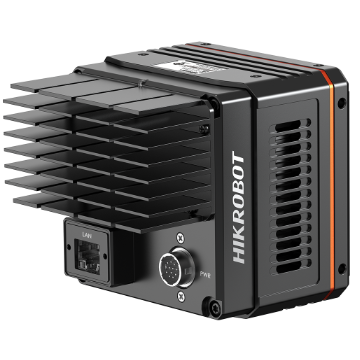

De Hikrobot MV-CH800-60TM-M58S-NN (CH-serie) is een area-scancamera met rolling shutter op 10304 × 7712. Sensorformaat 30 mm × 22.4 mm, pixelpitch 2.9 μm × 2.9 μm.
Sensorvarianten: Stacked BSI. Framesnelheid volgens datasheet tot 15 fps @ 10304 × 7712 Mono 8. Interface: 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s). Lensmount: M58*0.75, flange focal length 11.48 mm.
Mono-uitvoering voor maximale luminantie-resolutie en contrast. Rolling shutter: bij beweging tijdens belichting rekening houden met strobe of stilstand; anders geometric skew.
Select variant
SKU: mv-ch800-60tm-m58s-nn
Specifications
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Digitale I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Afmetingen | 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Dynamisch bereik | 75.7 dB |
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Belichtingstijd | 12 μs to 10 sec |
| Gain | 0 dB to 24 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Lensvatting | M58*0.75, flange focal length 11.48 mm |
| Max. framesnelheid | 15 fps @ 10304 × 7712 Mono 8 |
| Mono/kleur | Mono |
| Besturingssysteem | 32/64-bit Windows 7/10/11, 32/64-bit Linux |
| Pixelformaat | Mono 8/10/10Packed/12/12Packed |
| Pixelgrootte | 2.9 μm × 2.9 μm |
| Stroomverbruik | Typ. 11.7 W @ 12 VDC |
| Voeding | 9 VDC to 24 VDC |
| Resolutie | 10304 × 7712 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Stacked BSI |
| Sensorgrootte | 30 mm × 22.4 mm |
| Sensortype | CMOS, rolling shutter |
| SNR | 42 dB |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 80 °C (–22 °F to 176 °F) |
| Gewicht | Circa 600 g (1.3 lb.) |
