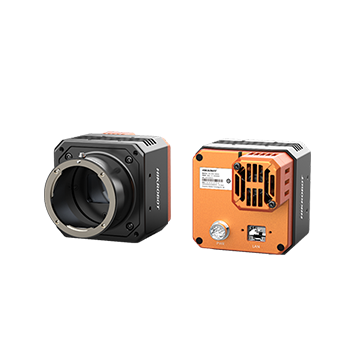

MV-CH650-90TC-F-NF
Color · 17.2 fps @ 9344 × 7000 · 10 Gigabit Ethernet, compatible with Gigabit Ethernet · 90TC-F-NF
mv-ch650-90tc-f-nf
Area Scan Camera
De Hikrobot MV-CH650-90TC-F-NF (CH-serie) is een area-scancamera met global shutter op 9344 × 7000. Sensorformaat 29.9 mm × 22.4 mm, pixelpitch 3.2 μm × 3.2 μm.
Sensorvarianten: Gpixel GMAX3265. Framesnelheid hangt van de gekozen pixelmodus af (o.a. 17.2 fps @ 9344 × 7000). High-bandwidth interface (10GigE-klasse volgens variant).
Bayer/kleur wanneer chromatische informatie nodig is; mono wanneer contrast, metrologie of codes onder gecontroleerde belichting leidend zijn.
Beschikbare configuraties
- mv-ch650-90tc-f-nf — Color · 17.2 fps @ 9344 × 7000 · 10 Gigabit Ethernet, compatible with Gigabit Ethernet · 90TC-F-NF
- mv-ch650-90tm-f-nf — Mono · 17.2 fps @ 9344 × 7000 · 10 Gigabit Ethernet, compatible with Gigabit Ethernet · 90TM-F-NF
- mv-ch650-90xm-f-nf — Mono · 31.5 fps @ 9344 × 7000 · CoaXPress with DIN interface · 90XM-F-NF
- mv-ch650-90yc-f-nn — Mono · 71 fps @ 9344 × 7000 · CoaXPress with Micro-BNC interface · 90YC-F-NN
- mv-ch650-90tc-m58s-nf — Color · 17.2 fps @ 9344 × 7000 · 10 Gigabit Ethernet, compatible with Gigabit Ethernet · 90TC-M58S-NF
- mv-ch650-90tm-m58s-nf — Mono · 17.2 fps @ 9344 × 7000 · 10 Gigabit Ethernet, compatible with Gigabit Ethernet · 90TM-M58S-NF
- mv-ch650-90xc-m58s-nf — Color · 31.5 fps @ 9344 × 7000 · CoaXPress with DIN interface · 90XC-M58S-NF
- mv-ch650-90xm-m58s-nf — Mono · 31.5 fps @ 9344 × 7000 · CoaXPress with DIN interface · 90XM-M58S-NF
- mv-ch650-90yc-m58s-nn — Color · 71 fps @ 9344 × 7000 · CoaXPress with Micro-BNC interface · 90YC-M58S-NN
- mv-ch650-90ym-m58s-nn — Mono · 71 fps @ 9344 × 7000 · CoaXPress with Micro-BNC interface · 90YM-M58S-NN
- mv-ch650-90ym-m58s-nn-v2 — Mono · 71 fps @ 9344 × 7000 Mono 8 · CoaXPress with Micro-BNC interface · 90YM-M58S-NN-V2
Select variant
SKU: mv-ch650-90tc-f-nf
Specifications
| Dynamisch bereik | 66 dB |
|---|---|
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Datainterface | 10 Gigabit Ethernet, compatible with Gigabit Ethernet |
| Max. framesnelheid | 17.2 fps @ 9344 × 7000 |
| Mono/kleur | Kleur |
| Model | 90TC-F-NF |
| Pixelgrootte | 3.2 μm × 3.2 μm |
| Resolutie | 9344 × 7000 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Gpixel GMAX3265 |
| Sensorgrootte | 29.9 mm × 22.4 mm |
| Sensortype | CMOS, global shutter |
| SNR | 40 dB |
