MV-CH500-90TM-F-NF
Mono · 15.5 fps @ 7008 × 7000 Mono 8 · F-mount, flange focal length 46.5 mm
mv-ch500-90tm-f-nf
Area Scan Camera

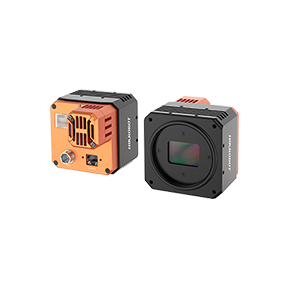

De Hikrobot MV-CH500-90TM-F-NF (CH-serie) is een area-scancamera met global shutter op 7008 × 7000. Sensorformaat 22.4 mm × 22.4 mm, pixelpitch 3.2 μm × 3.2 μm.
Sensorvarianten: Gpixel® GMAX. Framesnelheid hangt van de gekozen pixelmodus af (o.a. 15.5 fps @ 7008 × 7000 Mono 8). Interface: 10 Gigabit Ethernet, compatible with Gigabit Ethernet.
Bayer/kleur wanneer chromatische informatie nodig is; mono wanneer contrast, metrologie of codes onder gecontroleerde belichting leidend zijn.
Beschikbare configuraties
- mv-ch500-90tm-f-nf — Mono · 15.5 fps @ 7008 × 7000 Mono 8 · F-mount, flange focal length 46.5 mm
- mv-ch500-90tc-m58s-nf — Color · 15.5 fps @ 7008 × 7000 Bayer BG 8 · M58*0.75, flange focal length 11.48 mm
- mv-ch500-90tm-m58s-nf — Mono · 15.5 fps @ 7008 × 7000 Mono 8 · M58*0.75, flange focal length 11.48 mm
Select variant
SKU: mv-ch500-90tm-f-nf
Specifications
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | 10 Gigabit Ethernet, compatible with Gigabit Ethernet |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Digitale I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Dynamisch bereik | 66 dB |
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Belichtingstijd | 15 μs to 10 sec |
| Gain | 1.25 × to 6 × |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 64-bit Windows 11 |
| Lensvatting | F-mount, flange focal length 46.5 mm |
| Max. framesnelheid | 15.5 fps @ 7008 × 7000 Mono 8 |
| Mono/kleur | Mono |
| Pixelgrootte | 3.2 μm × 3.2 μm |
| Voeding | 9 VDC to 24 VDC |
| Resolutie | 7008 × 7000 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Gpixel® GMAX |
| Sensorgrootte | 22.4 mm × 22.4 mm |
| Sensortype | CMOS, global shutter |
| SNR | 40 dB |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
