MV-CH1030-90TC-M58S-NN
11 fps @ 11276 × 9200 Bayer GB 8
mv-ch1030-90tc-m58s-nn
Area Scan Camera

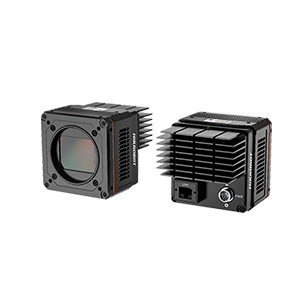

De Hikrobot MV-CH1030-90TC-M58S-NN (CH-serie) is een area-scancamera met global shutter op 11276 × 9200. Sensorformaat 46.6 mm, pixelpitch 3.2 μm × 3.2 μm.
Sensorvarianten: Gpixel GMAX32103. Framesnelheid hangt van de gekozen pixelmodus af (o.a. 11 fps @ 11276 × 9200 Bayer GB 8). Interface: 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s). Lensmount: M58*0.75, flange focal length 11.48 mm.
Bayer/kleur wanneer chromatische informatie nodig is; mono wanneer contrast, metrologie of codes onder gecontroleerde belichting leidend zijn.
Beschikbare configuraties
- mv-ch1030-90tc-m58s-nn — 11 fps @ 11276 × 9200 Bayer GB 8
- mv-ch1030-90tm-m58s-nn — 11 fps @ 11276 × 9200 Mono 8
Select variant
SKU: mv-ch1030-90tc-m58s-nn
Specifications
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Digitale I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Afmetingen | 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Dynamisch bereik | 64.86 dB |
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Belichtingstijd | 20 μs to 10 sec |
| Gain | 1.4 × to 5.2 × |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Lensvatting | M58*0.75, flange focal length 11.48 mm |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Max. framesnelheid | 11 fps @ 11276 × 9200 Bayer GB 8 |
| Pixelgrootte | 3.2 μm × 3.2 μm |
| Voeding | 12 VDC to 24 VDC |
| Resolutie | 11276 × 9200 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Gpixel GMAX32103 |
| Sensorgrootte | 46.6 mm |
| Sensortype | CMOS, global shutter |
| SNR | 39.88 dB |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 80 °C (–22 °F to 176 °F) |
| Gewicht | 738 g (1.6 lb.) |
