MV-CH050-10CC
Sony® IMX250 · 2432 × 2048 · 140 fps @ 2432 × 2048 · 10CC
mv-ch050-10cc
Area Scan Camera

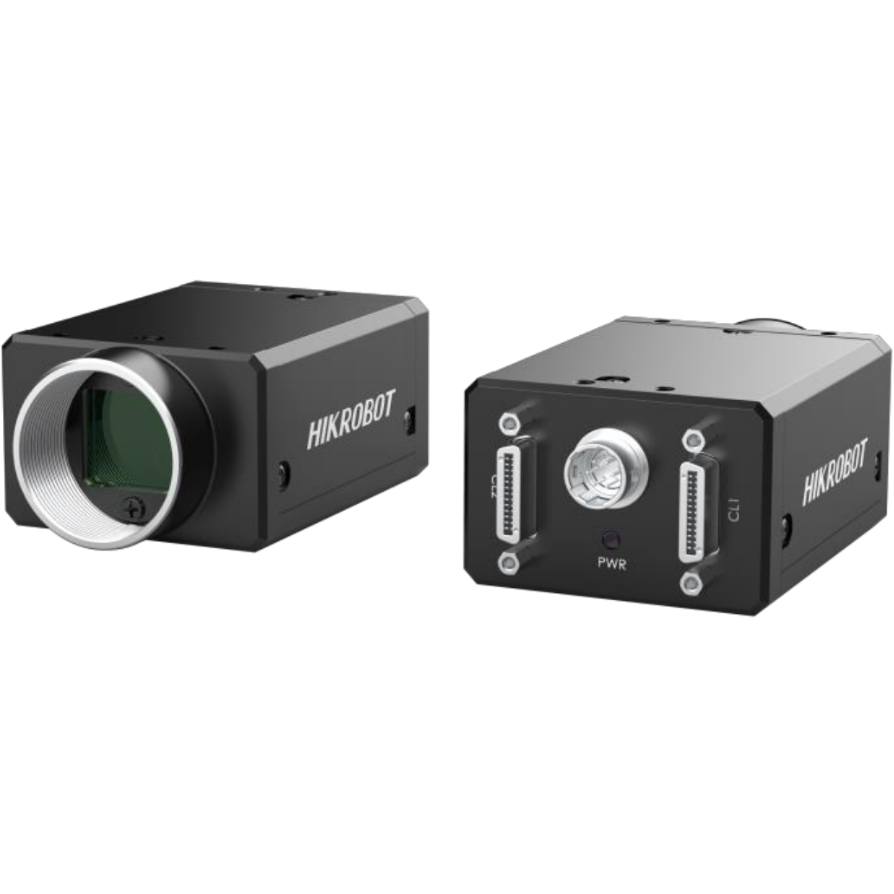

De Hikrobot MV-CH050-10CC (CH-serie) is een area-scancamera met global shutter op 2432 × 2048, 2448 × 2048 of 2592 × 2160.
Sensorvarianten: Sony® IMX250, Stacked BSI, Gpixel GMAX3405 of Gpixel GMAX2505. Framesnelheid hangt van de gekozen pixelmodus af (o.a. 140 fps @ 2432 × 2048).
Bayer/kleur wanneer chromatische informatie nodig is; mono wanneer contrast, metrologie of codes onder gecontroleerde belichting leidend zijn. Sensorkeuze (Sony® IMX250, Stacked BSI, Gpixel GMAX3405 of Gpixel GMAX2505): afstemmen op FOV, pixels-op-kenmerk en beschikbare optiek. Resolutie-opties 2432 × 2048, 2448 × 2048 of 2592 × 2160.
Beschikbare configuraties
- mv-ch050-10cc — Sony® IMX250 · 2432 × 2048 · 140 fps @ 2432 × 2048 · 10CC
- mv-ch050-10cm — Sony® IMX250 · 2432 × 2048 · 140 fps @ 2432 × 2048 · 10CM
- mv-ch050-10uc — Sony® IMX250 · 2448 × 2048 · 74.1 fps @ 2448 × 2048 Bayer RG 8 · 10UC
- mv-ch050-10um — Sony® IMX250 · 2448 × 2048 · 74.1 fps @ 2448 × 2048 Mono 8 · 10UM
- mv-ch050-60uc — Stacked BSI · 2448 × 2048 · 79 fps @ 2448 × 2048 Bayer GR 8 · 60UC
- mv-ch050-60um — Stacked BSI · 2448 × 2048 · 79 fps @ 2448 × 2048 Mono 8 · 60UM
- mv-ch050-90y1c-nn — Gpixel GMAX3405 · 2448 × 2048 · 164 fps @ 2448 × 2048 Mono 8 164 fps @ 2448 × 2048 Bayer GB 8 · 90Y1C-NN
- mv-ch050-90y1m-nn — Gpixel GMAX3405 · 2448 × 2048 · 164 fps @ 2448 × 2048 Mono 8 164 fps @ 2448 × 2048 Bayer GB 8 · 90Y1M-NN
- mv-ch050-90xc-c-nn — Gpixel GMAX2505 · 2592 × 2160 · 213 fps @ 2592 × 2160 Bayer BG 8 · 90XC-C-NN
- mv-ch050-90xm-c-nn — Gpixel GMAX2505 · 2592 × 2160 · 213 fps @ 2592 × 2160 Mono 8 · 90XM-C-NN
Select variant
SKU: mv-ch050-10cc
Specifications
| Certificering | CE, RoHS, KC |
|---|---|
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Max. framesnelheid | 140 fps @ 2432 × 2048 |
| Resolutie | 2432 × 2048 |
| Sensormodel | Sony® IMX250 |
| Model | 10CC |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensortype | CMOS, global shutter |
