MV-CH040-A0CM
mv-ch040-a0cm
Area Scan Camera

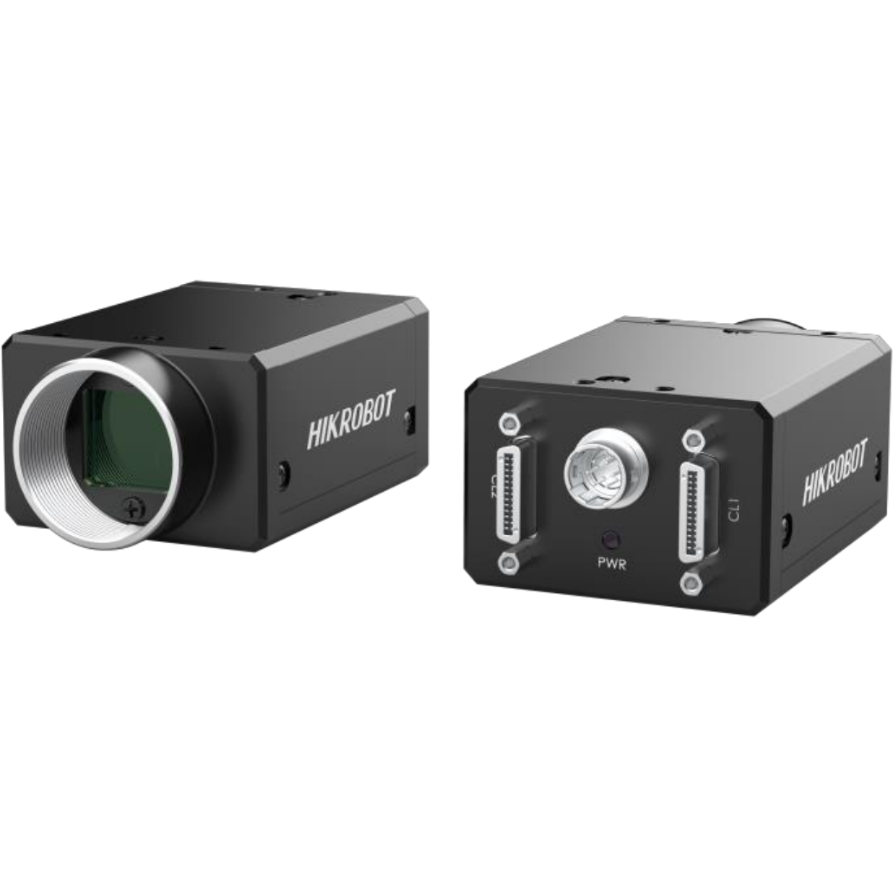

De Hikrobot MV-CH040-A0CM (CH-serie) is een area-scancamera met global shutter op 2048 × 2048. Sensorformaat 1", pixelpitch 5.5 μm × 5.5 μm.
Framesnelheid volgens datasheet tot 180 fps @ 2040 × 2048 Mono 8. Interface: Camera Link with SDR Connector. Lensmount: C-mount.
Mono-uitvoering voor maximale luminantie-resolutie en contrast.
Select variant
SKU: mv-ch040-a0cm
Specifications
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or frame grabber software conform het GenICam-protocol |
| Compatibiliteit | Camera Link V2.0, GenICam |
| Configuration mode | Base, Medium, Full, 80-bit |
| Datainterface | Camera Link with SDR Connector |
| Decimation | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Digitale I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). Camera Link interface provides I/O (CC1/CC2/CC3/CC4) |
| Afmetingen | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Dynamisch bereik | 59.7 dB |
| Belichtingsmodus | Off/Once/Continuous exposure mode |
| Belichtingstijd | 28 μs to 10 sec |
| Gain | 0 dB to 12 dB |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Lensvatting | C-mount |
| Max. framesnelheid | 180 fps @ 2040 × 2048 Mono 8 |
| Mono/kleur | Mono |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 64-bit Windows 11 |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
| Pixelformaat | Mono 8/10/12 |
| Pixelgrootte | 5.5 μm × 5.5 μm |
| Stroomverbruik | Typ. 3.6 W@ 12 VDC |
| Voeding | 9 VDC to 24 VDC, supports PoCL |
| Resolutie | 2048 × 2048 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensorgrootte | 1" |
| Sensortype | CMOS, global shutter |
| SNR | 39.6 dB |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Temperatuur | Werktemperatuur: -10 °C to 50 °C (14 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 100 g (0.2 lb.) |
