MV-CB013-A0UC-C
C-mount · 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") · Color
mv-cb013-a0uc-c
Area Scan Camera

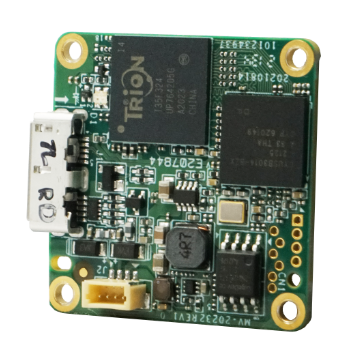

De Hikrobot MV-CB013-A0UC-C (CB board-level) is een area-scancamera met global shutter op 1280 × 1024. Sensorformaat 1/2", pixelpitch 4.8 μm × 4.8 μm.
Framesnelheid volgens datasheet tot 201 fps @ 1280 × 1024. Interface: USB3.0.
Bayer/kleur wanneer chromatische informatie nodig is; mono wanneer contrast, metrologie of codes onder gecontroleerde belichting leidend zijn.
Beschikbare configuraties
- mv-cb013-a0uc-c — C-mount · 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") · Color
- mv-cb013-a0uc-s — M12-mount · 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") · Color
- mv-cb013-a0um-b — None · 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") · Mono
- mv-cb013-a0um-c — C-mount · 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") · Mono
- mv-cb013-a0um-s — M12-mount · 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") · Mono
Select variant
SKU: mv-cb013-a0uc-c
Specifications
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
|---|---|
| Certificering | CE, FCC, RoHS, KC |
| Clientsoftware | MVS or third-party software compatible with USB3 Vision Protocol |
| Compatibiliteit | USB3 Vision, GenICam |
| Datainterface | USB3.0 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Digitale I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Dynamisch bereik | 53 dB |
| Belichtingsmodus | Off/ Once/ Continuous exposure mode |
| Belichtingstijd | 9 μs to 10 sec |
| Gain | 0 dB to 16 dB |
| Luchtvochtigheid | 20% to 80% RH, niet-condenserend |
| Max. framesnelheid | 201 fps @ 1280 × 1024 |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS |
| Dimension | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
| Lensvatting | C-mount |
| Mono/kleur | Kleur |
| Pixelgrootte | 4.8 μm × 4.8 μm |
| Voeding | USB3.0 power supply |
| Resolutie | 1280 × 1024 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensorgrootte | 1/2" |
| Sensortype | CMOS, global shutter |
| SNR | 40 dB |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
