MV-CB004-10GC-S
Color
mv-cb004-10gc-s
Area Scan Camera

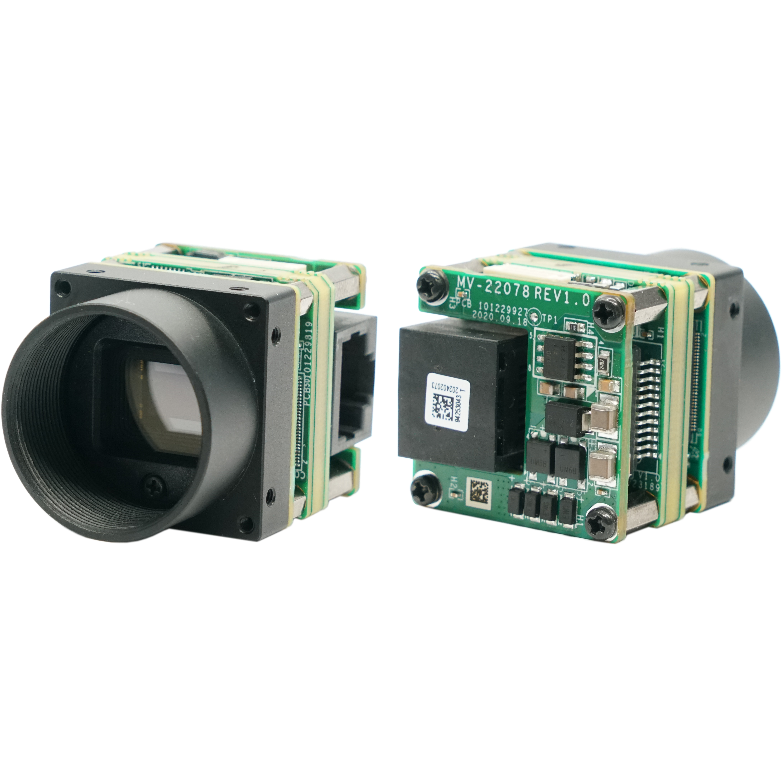

De Hikrobot MV-CB004-10GC-S (CB board-level) is een area-scancamera met global shutter op 720 × 540. Sensorformaat 1/2.9", pixelpitch 6.9 μm × 6.9 μm.
Sensorvarianten: Sony® IMX297. Framesnelheid volgens datasheet tot 125.2 fps @ 720 × 540. Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lensmount: M12-mount.
Bayer/kleur wanneer chromatische informatie nodig is; mono wanneer contrast, metrologie of codes onder gecontroleerde belichting leidend zijn.
Beschikbare configuraties
- mv-cb004-10gc-s — Color
- mv-cb004-10gm-s — Mono
Select variant
SKU: mv-cb004-10gc-s
Specifications
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|---|---|
| Certificering | CE, FCC, RoHS, KC |
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | Gigabit Ethernet, compatible with Fast Ethernet |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Digitale I/O | 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Afmetingen | 29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2") |
| Dynamisch bereik | 74 dB |
| Belichtingsmodus | Off/ Once/ Continuous exposure mode |
| Belichtingstijd | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Gain | 0 dB to 24 dB |
| Luchtvochtigheid | 20% to 80% RH, niet-condenserend |
| Lensvatting | M12-mount |
| Max. framesnelheid | 125.2 fps @ 720 × 540 |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Mono/kleur | Kleur |
| Pixelgrootte | 6.9 μm × 6.9 μm |
| Voeding | 9 VDC to 24 VDC, supports PoE |
| Resolutie | 720 × 540 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Sony® IMX297 |
| Sensorgrootte | 1/2.9" |
| Sensortype | CMOS, global shutter |
| SNR | 41 dB |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 45 g (0.1 lb.) |
