MV-CA060-11GM
mv-ca060-11gm
Area Scan Camera

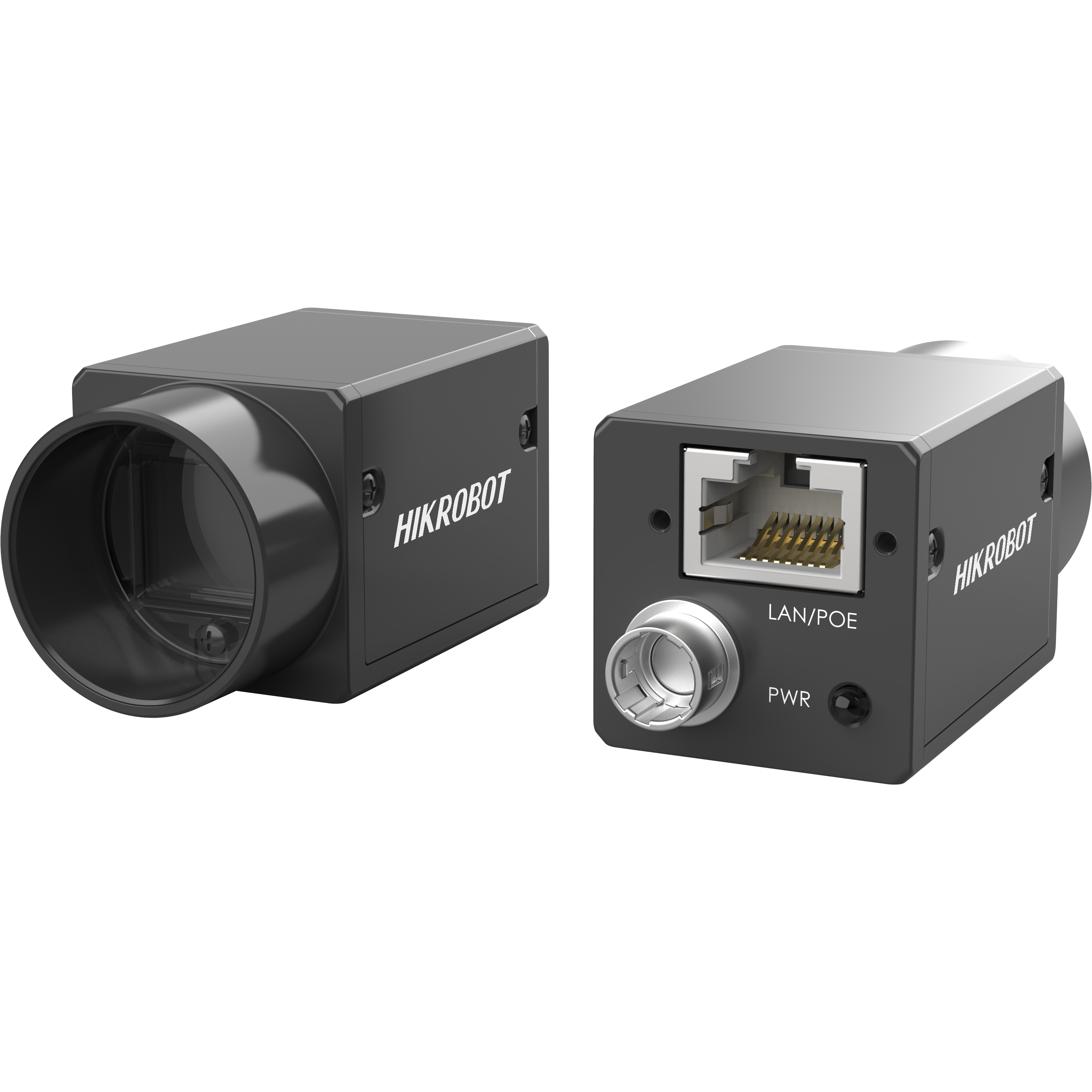

De Hikrobot MV-CA060-11GM (CA-serie) is een area-scancamera met rolling shutter op 3072 × 2048. Sensorformaat 1/1.8", pixelpitch 2.4 μm × 2.4 μm.
Sensorvarianten: Sony® IMX178. Framesnelheid volgens datasheet tot 17 fps @ 3072 × 2048. Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lensmount: C-mount.
Mono-uitvoering voor maximale luminantie-resolutie en contrast. Rolling shutter: bij beweging tijdens belichting rekening houden met strobe of stilstand; anders geometric skew.
Select variant
SKU: mv-ca060-11gm
Specifications
| Binning | Supports 1 × 1, 2 × 2 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | Gigabit Ethernet, compatible with Fast Ethernet |
| Decimation | Not support |
| Digitale I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Afmetingen | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Dynamisch bereik | 71.3 dB |
| Belichtingsmodus | Off/Once/Continuous exposure mode, supports Global Reset |
| Belichtingstijd | 27 μs to 2.5 sec |
| Gain | 0 dB to 20 dB |
| Luchtvochtigheid | 20% to 80% RH, niet-condenserend |
| Image buffer | 128 MB |
| Beschermingsgraad | IP30 (bij correcte lensmontage en bedrading) |
| Lensvatting | C-mount |
| Max. framesnelheid | 17 fps @ 3072 × 2048 |
| Mono/kleur | Mono |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Pixelformaat | Mono 8/10/10p/12/12p |
| Pixelgrootte | 2.4 μm × 2.4 μm |
| Stroomverbruik | Typ. 2.5 W@ 12 VDC |
| Voeding | 12 VDC, supports PoE |
| Resolutie | 3072 × 2048 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Sony® IMX178 |
| Sensorgrootte | 1/1.8" |
| Sensortype | CMOS, rolling shutter |
| SNR | 41.3 dB |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 68 g (0.15 lb.) |
