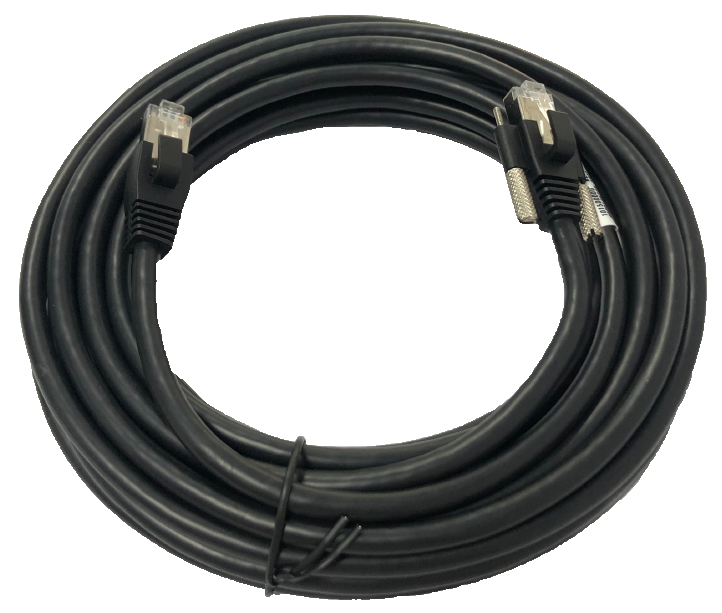

MV-ACG-RJ45s-RJ45-SF-3m
3 m
mv-acg-rj45s-rj45-sf-3m
Vision Components
MV-ACG-RJ45s-RJ45-SF-3m is een Sedeco vision-component op basis van de live catalogusgegevens: Jacket: PVC · Packaging: Individual package · Cable color: Black · Max. voltage: 30 VDC · Cable diameter: 6.5 mm. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Beschikbare configuraties
- mv-acg-rj45s-rj45-sf-3m — 3 m
- mv-acg-rj45s-rj45-sf-5m — 5 m
- mv-acg-rj45s-rj45-sf-7m — 7 m
- mv-acg-rj45s-rj45-sf-10m — 10 m
- mv-acg-rj45s-rj45-sf-15m — 15 m
Select variant
SKU: mv-acg-rj45s-rj45-sf-3m
Specifications
| Applicable scenario | Tank chain,Robot arm |
|---|---|
| Cable color | Black |
| Cable diameter | 6.5 mm |
| Cable mechanical | 4P*26#+AB |
| Certificering | RoHS2.0,UL |
| Connector durability | ≥750 cycles |
| End A connector | RJ45 (with locking stud) |
| End B connector | RJ45 |
| Jacket | PVC |
| Max. ±180° torsional cycles | 3 million keer |
| Max. ±90° bending cycles | 5 million keer |
| Max. U-type bending cycles | 10 million keer |
| Max. voltage | 30 VDC |
| Min. bending radius | 78 mm |
| Length | 3 m |
| Packaging | Individual package |
| Working temperature | -20°C~ 75°C |
