MV-SC3050M-08M-WBN
2368 × 1760 · 30 fps · M12-mount, mechanical autofocus lens · SC3050M-08M-WBN
mv-sc3050m-08m-wbn

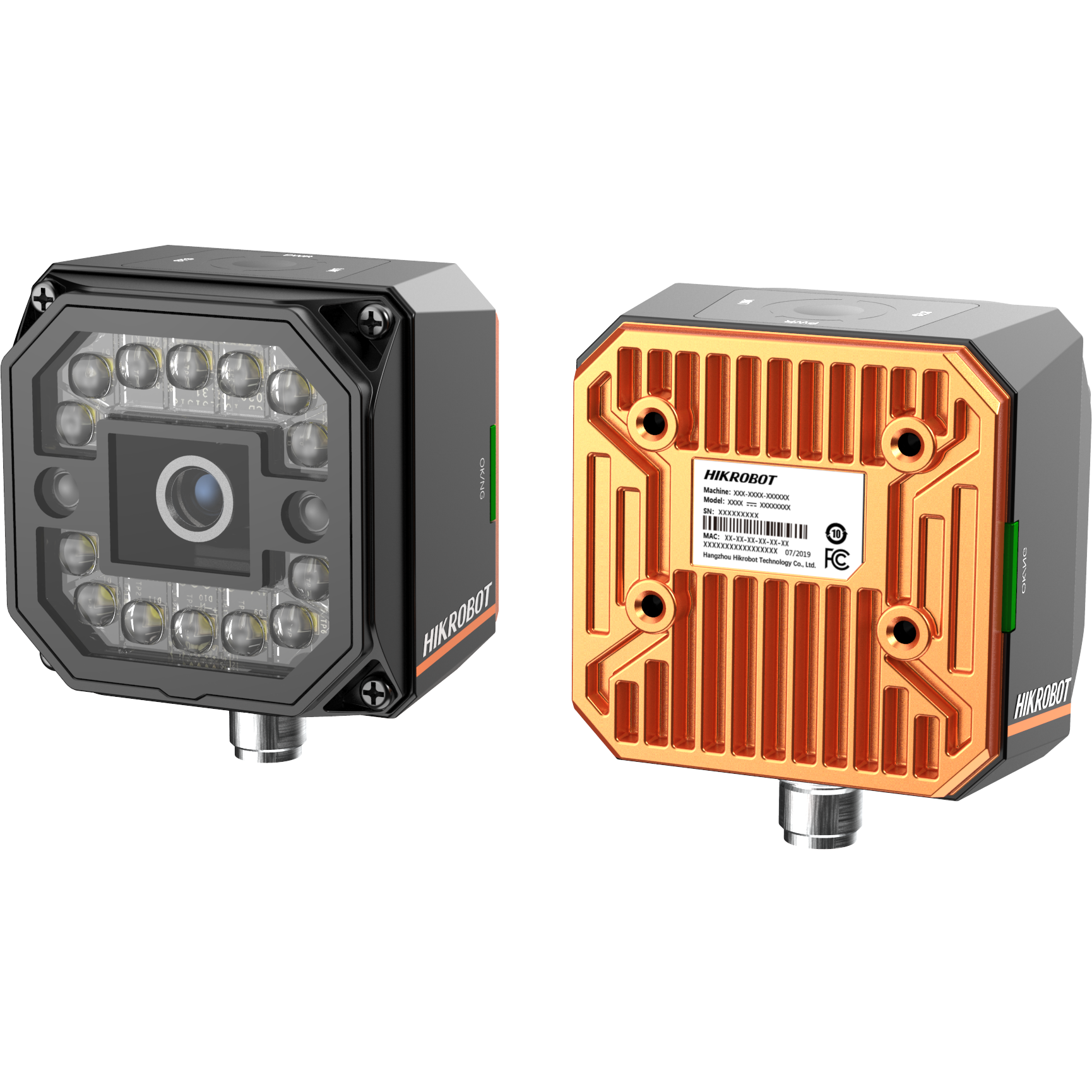

Smart Camera
De Hikrobot MV-SC3050M-08M-WBN (SC smart camera) is een smart camera. CMOS, global shutter.
Data-interface Fast Ethernet (100 Mbit/s).
On-device vision: tools en beslissingen op de camera, bruikbaar wanneer de inspectielogica dicht bij de cel moet blijven zonder dedicated PC-visionhost per station.
Beschikbare configuraties
- mv-sc3050m-08m-wbn — 2368 × 1760 · 30 fps · M12-mount, mechanical autofocus lens · SC3050M-08M-WBN
- mv-sc3050m-12m-wbn — 2368 × 1760 · 30 fps · M12-mount, mechanical autofocus lens · SC3050M-12M-WBN
- mv-sc3050m-16m-wbn — 2368 × 1760 · 30 fps · M12-mount, mechanical autofocus lens · SC3050M-16M-WBN
- mv-sc3050xc-08m-wbn — 2432 × 2048 · 40 fps · M12-mount, mechanical autofocus supported · SC3050XC-08M-WBN
- mv-sc3050xc-12m-wbn — 2432 × 2048 · 40 fps · M12-mount, mechanical autofocus supported · SC3050XC-12M-WBN
- mv-sc3050xc-16m-wbn — 2432 × 2048 · 40 fps · M12-mount, mechanical autofocus supported · SC3050XC-16M-WBN
- mv-sc3050xm-08m-wbn — 2432 × 2048 · 40 fps · M12-mount, mechanical autofocus supported · SC3050XM-08M-WBN
- mv-sc3050xm-12m-wbn — 2432 × 2048 · 40 fps · M12-mount, mechanical autofocus supported · SC3050XM-12M-WBN
- mv-sc3050xm-16m-wbn — 2432 × 2048 · 40 fps · M12-mount, mechanical autofocus supported · SC3050XM-16M-WBN
Select variant
SKU: mv-sc3050m-08m-wbn
Specifications
| Certificering | CE, KC |
|---|---|
| Clientsoftware | SCMVS |
| Datainterface | Fast Ethernet (100 Mbit/s) |
| Gain | 0 dB to 15 dB |
| Lensvatting | M12-mount, mechanical autofocus lens |
| Max. framesnelheid | 30 fps |
| Resolutie | 2368 × 1760 |
| Model | SC3050M-08M-WBN |
| Voeding | 24 VDC |
| Sensortype | CMOS, global shutter |
