MV-SC3030XC-08M-WBN
Color · RGB 8, Mono 8 · 8 mm (0.3")
mv-sc3030xc-08m-wbn
Smart Camera

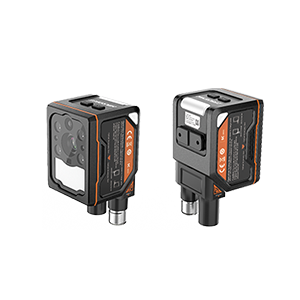

De Hikrobot MV-SC3030XC-08M-WBN (SC smart camera) is een smart camera met 2048 × 1536. CMOS, global shutter (1/1.8").
Max. framesnelheid 40 fps. Data-interface Fast Ethernet (100 Mbit/s). Lensmount M12-mount, mechanical autofocus supported.
On-device vision: tools en beslissingen op de camera, bruikbaar wanneer de inspectielogica dicht bij de cel moet blijven zonder dedicated PC-visionhost per station. Verlichting volgens specificatie: White spot light source. Red/blue/IR point light source is optional. Digitale I/O en netwerk op industriële connectoren voor trigger, resultaat en eventuele lampaansturing.
Beschikbare configuraties
- mv-sc3030xc-08m-wbn — Color · RGB 8, Mono 8 · 8 mm (0.3")
- mv-sc3030xc-12m-wbn — Color · RGB 8, Mono 8 · 12 mm (0.5")
- mv-sc3030xc-16m-wbn — Color · RGB 8, Mono 8 · 16 mm (0.6")
- mv-sc3030xm-08m-wbn — Mono · Mono 8 · 8 mm (0.3")
- mv-sc3030xm-12m-wbn — Mono · Mono 8 · 12 mm (0.5")
- mv-sc3030xm-16m-wbn — Mono · Mono 8 · 16 mm (0.6")
Select variant
SKU: mv-sc3030xc-08m-wbn
Specifications
| Richtsysteem | Oranje LED |
|---|---|
| Certificering | CE, KC |
| Clientsoftware | SCMVS |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Datainterface | Fast Ethernet (100 Mbit/s) |
| Digitale I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1 Supports triggering device via pressing top trigger button |
| Afmetingen | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6") |
| Dynamisch bereik | 77.8 dB |
| Belichtingstijd | 6 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Indicator | 360° visual indicator |
| Beschermingsgraad | IP67 (under proper installation of waterproof lens cap) |
| Lensdop | Polarized + diffused + full-Transparante lensdop |
| Lensvatting | M12-mount, mechanical autofocus supported |
| Lichtbron | White spot light source. Red/blue/IR point light source is optional |
| Max. framesnelheid | 40 fps |
| Brandpuntsafstand | 8 mm (0.3") |
| Mono/kleur | Kleur |
| Pixel format | RGB 8, Mono 8 |
| Pixelgrootte | 3.45 μm × 3.45 μm |
| Stroomverbruik | Circa 6.5 W@ 24 VDC |
| Voeding | 24 VDC |
| Resolutie | 2048 × 1536 |
| Sensorgrootte | 1/1.8" |
| Sensortype | CMOS, global shutter |
| SNR | 43 dB |
| Oplossingscapaciteit | Supports importing and exporting project, up to 32 projects can be stored. |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 190 g (0.4 lb.) |
