MV-VC5715-256G70-2T
mv-vc5715-256g70-2t

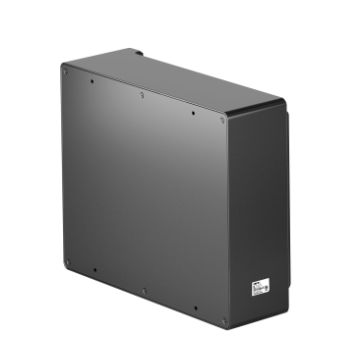

Vision Box
MV-VC5715-256G70-2T is een Sedeco vision-controller op basis van de live catalogusgegevens: 24 VDC (4-pin interface for system power supply) · CPU: Intel® CoreTM i7-12700 · GPU: Intel® UHD Graphics 770 · Chip: H610 · Memory: 8 GB 16 GB 32 GB. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Select variant
SKU: mv-vc5715-256g70-2t
Specifications
| Certificering | CE, KC |
|---|---|
| Chip | H610 |
| CPU | Intel® CoreTM i7-12700 |
| Digitale I/O | Opto-isolated input × 8 Opto-isolated output × 12 ( supports NPN/PNP switching) Digital-isolated low-side driver output × 8 Non-isolated bi-directional differential I/O × 4 |
| Afmetingen | 302.3 mm × 248 mm × 105.2 mm (11.9" × 9.8" × 4.1") |
| Extended interface | SATA 3.0 interface × 2 |
| GPU | Intel® UHD Graphics 770 |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Memory | 8 GB 16 GB 32 GB |
| Network interface | GigE interface × 7, including interface for PoE × 4 |
| Besturingssysteem | Unactivated Windows 10 |
| Stroomverbruik | Typ. 264 W (4-pin interface for system power supply) |
| Voeding | 24 VDC (4-pin interface for system power supply) |
| Serial Port | RS-232 × 2 by default, supports switching to RS-485 and RS-422 |
| Storage | 256 GB SSD and 2T HDD 256 GB SSD |
| Temperatuur | 0 °C to 45 °C (32 °F to 113 °F) 0 °C to 50 °C (32 °F to 122 °F) |
| USB Interface | USB 2.0 × 4 USB 3.0 × 4 Built-in USB 2.0 × 1 |
| Video output | HDMI interface × 1, VGA interface × 1 Supports independent display output at the same time Max. resolution 1920 × 1080 @ 60 Hz |
| Gewicht | Circa 6 kg (13.2 lb.) |
