MV-LE200-48W24-2D
Serial · DB9F serial port · Natural cooling · 48W24-2D
mv-le200-48w24-2d
Light Source

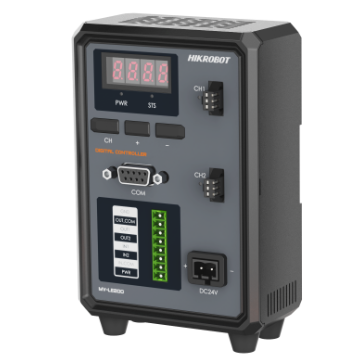

De Hikrobot MV-LE200-48W24-2D is een lichtcontroller. Lichtcontroller: continuous- of strobe-aansturing gesynchroniseerd met cameratrigger.
Afmetingen/modellen o.a. 48W24-2D, 90W24-6D, 120W24-4TD of 200W24-4TD. Formaat afstemmen op FOV inclusief positioneertolerantie.
Beschikbare configuraties
- mv-le200-48w24-2d — Serial · DB9F serial port · Natural cooling · 48W24-2D
- mv-le200-90w24-6d — Serial · DB9F serial port · Natural cooling · 90W24-6D
- mv-le200-120w24-4td — UDP, Serial · RJ45 network interface, DB9F serial port · Fan cooling · 120W24-4TD
- mv-le200-200w24-4td — UDP, Serial · RJ45 network interface, DB9F serial port · Fan cooling · 200W24-4TD
Select variant
SKU: mv-le200-48w24-2d
Specifications
| Applicable product | Ring light, bar light, flat light, coaxial light, etc. |
|---|---|
| Brightness level | 0 tot 255 |
| Certificering | CE, KC |
| Drive mode | Digital, constant voltage |
| Flash output | Not supported |
| Luchtvochtigheid | 20% RH to 85% RH (geen condensatie) |
| Beschermingsgraad | IP30 |
| Lighting mode | Continuous, strobe |
| Lighting output connector | SMR-03V-BC |
| Lighting response time | < 10 μs |
| Communication protocol | Serial |
| Console interface | DB9F serial port |
| Cooling mode | Natural cooling |
| Model | 48W24-2D |
| Output voltage | 24 VDC |
| PWM frequency | 125 kHz |
| Shell material | Plastic |
| Temperatuur | Werktemperatuur: 0 °C to 40 °C (32 °F to 104 °F) Opslagtemperatuur: -20 °C to 60 °C (-4 °F to 140 °F) |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Triggermodus | External trigger and internal trigger |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
