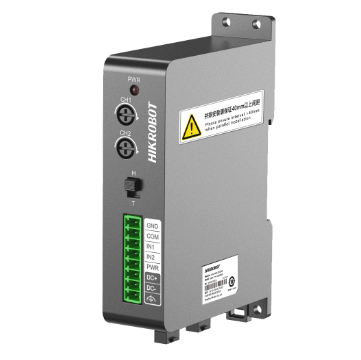

MV-LE100-24W24-2
Natural cooling · 2-channel · Opto-isolated input × 2 · 24W24-2
mv-le100-24w24-2
Light Source
De Hikrobot MV-LE100-24W24-2 is een lichtcontroller. Lichtcontroller: continuous- of strobe-aansturing gesynchroniseerd met cameratrigger.
Afmetingen/modellen o.a. 24W24-2, 48W24-2, 120W24-4, 60W24-4D, 200W24-2BD of 500W24-1ED. Formaat afstemmen op FOV inclusief positioneertolerantie.
Beschikbare configuraties
- mv-le100-24w24-2 — Natural cooling · 2-channel · Opto-isolated input × 2 · 24W24-2
- mv-le100-48w24-2 — Fan cooling · 2-channel · Opto-isolated input × 2 · 48W24-2
- mv-le100-120w24-4 — Fan cooling · 4-channel · Opto-isolated input × 4 · 120W24-4
- mv-le100-60w24-4d — Fan cooling · 4-channel · Opto-isolated input × 4 · 60W24-4D
- mv-le100-200w24-2bd — Fan cooling · 2-channel · Opto-isolated input × 2 · 200W24-2BD
- mv-le100-500w24-1ed — Fan cooling · 1-channel · Opto-isolated input ×1 · 500W24-1ED
Select variant
SKU: mv-le100-24w24-2
Specifications
| Certificering | CE, KC |
|---|---|
| Drive mode | Analog, constant voltage |
| Luchtvochtigheid | 20% RH to 85% RH (geen condensatie) |
| Beschermingsgraad | IP30 |
| Lighting mode | Continuous, strobe |
| Kanaal | 2-channel |
| Cooling mode | Natural cooling |
| Digital I/O | Opto-isolated input × 2 |
| Model | 24W24-2 |
| Output voltage | 24 VDC |
| Shell material | Plastic |
| Temperatuur | Werktemperatuur: 0 °C to 40 °C (32 °F to 104 °F) Opslagtemperatuur: –20 °C to 60 °C (–4 °F to 140 °F) |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Triggermodus | External trigger |
